Silicon carbide enables more efficient heat pumps and air conditioners with minimal redesign
Today heating and cooling systems consume more than 50% of all energy produced globally. Increasingly stringent energy efficiency standards including the American SEER ratings; ESEER and SOP levels in Europe, the middle east and Africa; and China’s GB21455 standards are all targeting reducing the impact heating and cooling has on our power grid and the warming planet.
Wolfspeed’s comprehensive portfolio of 650 V, NEW 750 V and 1200 V MOSFETS enable greater flexibility when designing with silicon carbide in heat pump and air conditioner systems and help engineers tailor designs to their unique needs.
Choose from a variety of package types to build a custom solution that can improve overall system efficiency 2.6% or more and meet strict efficiency standards. When compared to high-speed, soft-switched IGBTs, Wolfspeed's MOSFETs offer lower conduction losses and drastically reduced switching losses, coupled with an optimized overall system, thereby significantly improving the performance of heat pumps and air conditioners, while reducing audible noise at the same time.
Learn more about how Wolfspeed silicon carbide devices significantly improve these systems by exploring our featured content below.
Featured Content

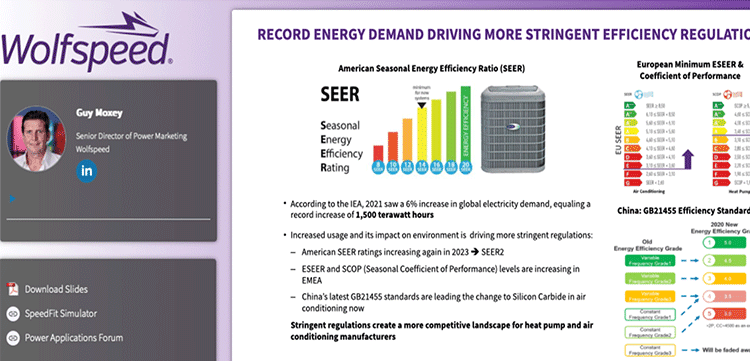

Industry-leading design support tools specifically for heat pumps and air conditioners

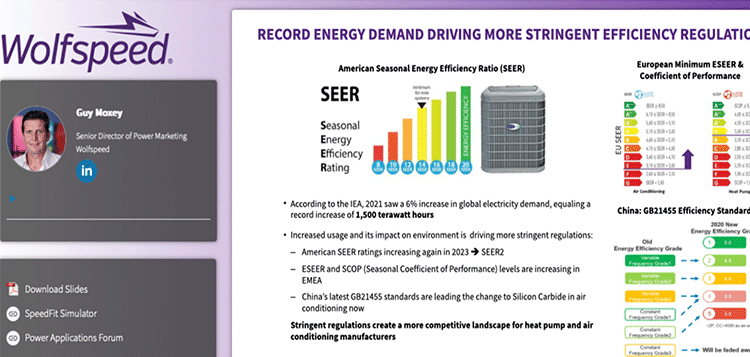

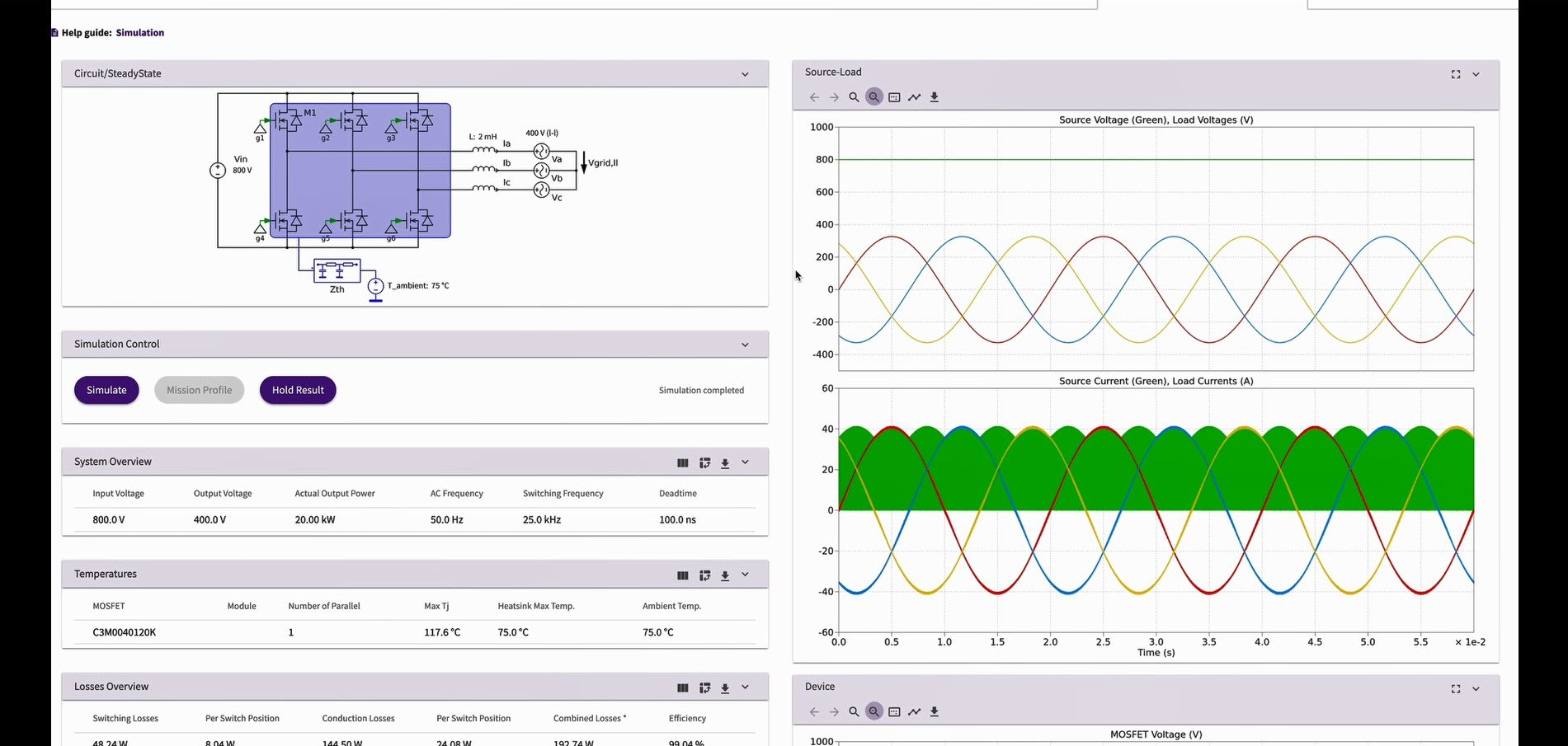

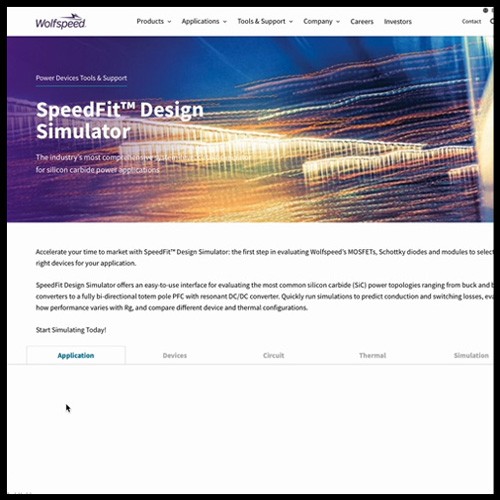

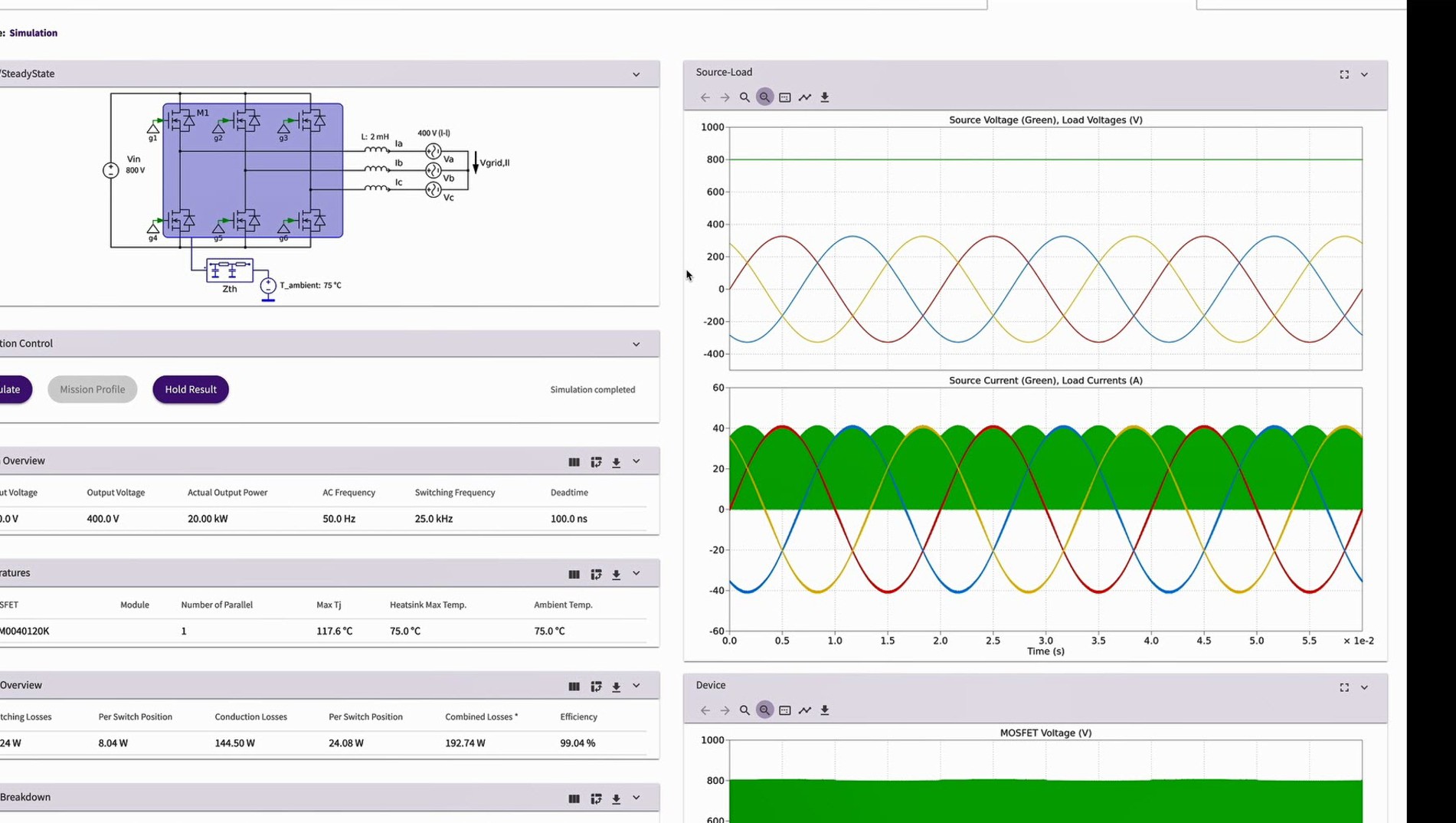

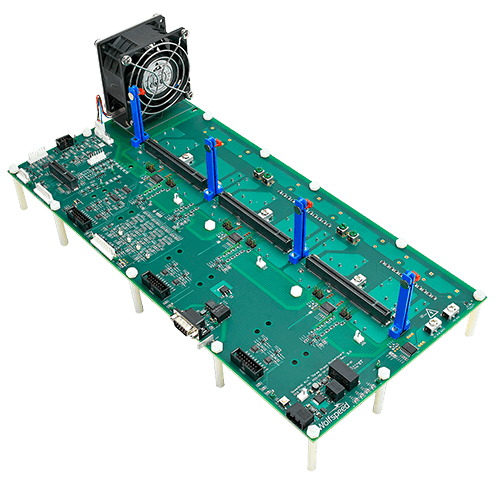

Wolfspeed offers industry-leading design support including SpeedFit™ Design Simulator, reference designs for industrial motor drive applications, and the newly released SpeedVal™ Kit 3-Phase Modular Evaluation Platform that enables rapid testing of SiC devices at real operating conditions across a range of 2-30 kV industrial motor drive, heat pump, and air conditioning applications. Browse our featured design resources or explore all design support tools.
Featured Design Support for Industrial Heat Pumps and Air Conditioners
Wolfspeed Silicon Carbide Components for Heat Pumps and Air Conditioning
Wolfspeed’s products represent the culmination of years of experience and expertise, where quality meets innovation to help bring your design forward.
Discrete Silicon Carbide MOSFETs
Discrete Silicon Carbide MOSFETs
Discrete Silicon Carbide MOSFETs - Filter By
Discrete Silicon Carbide MOSFETs
Product SKU | Buy Online | Request Sample | Data Sheet | CAD Model | Blocking Voltage | RDS(ON) at 25°C | Generation | Current Rating | Gate Charge Total | Output Capacitance | Total Power Dissipation (PTOT) | Maximum Junction Temperature | Package | Qualification |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C3M0060075K1 New | 750 V | 60 mΩ | Gen 3 MOS | 35 A | 52 nC | 69 pF | 126 W | 175 °C | TO-247-4 LP | Industrial | ||||
C3M0045075K1 New | 750 V | 45 mΩ | Gen 3 MOS | 42 A | 65 nC | 95 pF | 139 W | 175 °C | TO-247-4 LP | Industrial | ||||
C3M0025075K1 New | 750 V | 25 mΩ | Gen 3 MOS | 80 A | 119 nC | 158 pF | 262 W | 175 °C | TO-247-4 LP | Industrial | ||||
1200 V | 75 mΩ | Gen 3 | 32 A | 51 nC | 58 pF | 113.6 W | 150 °C | TO-247-4 | Industrial | |||||
1200 V | 75 mΩ | Gen 3 | 30 A | 51 nC | 58 pF | 113.6 W | 150 °C | TO-263-7 | Industrial | |||||
1200 V | 40 mΩ | Gen 3 | 64 A | 61 nC | 94 pF | 272 W | 150 °C | TO-263-7 | Industrial | |||||
650 V | 15 mΩ | Gen 3 | 120 A | 188 nC | 289 pF | 416 W | 175 °C | TO-247-4 | Industrial | |||||
650 V | 45 mΩ | Gen 3 | 47 A | 61 nC | 101 pF | 147 W | 175 °C | TO-263-7 | Industrial | |||||
650 V | 60 mΩ | Gen 3 | 36 A | 46 nC | 80 pF | 136 W | 175 °C | TO-263-7 | Industrial | |||||
1200 V | 32 mΩ | Gen 3 | 68 A | 111 nC | 133 pF | 277 W | 150 °C | TO-263-7 | Industrial |
Discrete Silicon Carbide Schottky Diodes
Discrete Silicon Carbide Schottky Diodes
Discrete Silicon Carbide Schottky Diodes - Filter By
Discrete Silicon Carbide Schottky Diodes
Product SKU | Buy Online | Request Sample | Data Sheet | CAD Model | Blocking Voltage | Current Rating | Generation | Forward Voltage(VF(type)) | Maximum Continuous Current (IF) | Total Capacitive Charge (QC (typ)) | Total Power Dissipation (PTOT) | Package | Qualification |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
650 V | 50 A | Gen 6 | 1.3 V | 50 A | 158 nC | 349 W | TO-247-2 | Industrial | |||||
650 V | 20 A | Gen 6 | 1.27 V | 20 A | 63 nC | 174 W | TO-247-2 | Industrial | |||||
650 V | 30 A | Gen 6 | 1.35 V | 88 A | 98 nC | 227 W | TO-247-2 | Industrial | |||||
1200 V | 10 A | Gen 4 | 1.5 V | 10 A | 52 nC per leg | 170 W | TO-252-2 | Industrial | |||||
650 V | 16 A | Gen 3 | 1.5 V | 16 A | 44 nC | 150 W | TO-220-2 | Industrial | |||||
650 V | 16 A | Gen 6 | 1.27 V | 16 A | 29 nC | 100 W | TO-247-3 | Industrial |
Silicon Carbide Power Modules
Silicon Carbide Power Modules
Silicon Carbide Power Modules - Filter By
Silicon Carbide Power Modules
Product SKU | Buy Online | Request Sample | Data Sheet | CAD Model | Package | Configuration | Blocking Voltage | Current Rating | RDS(ON) at 25°C | Generation | Maximum Junction Temperature | Module Size | Qualification | View Product |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
62 mm | Half-Bridge | 1200 V | 530 A | 2.6 mΩ | Gen 3 MOS | 150 °C | 105 x 62 x 31 mm | Industrial | ||||||
62 mm | Half-Bridge | 1200 V | 530 A | 2.6 mΩ | Gen 3 MOS + Diodes | 150 °C | 105 x 62 x 31 mm | Industrial | ||||||
62 mm | Half-Bridge | 1200 V | 175 A | 8 mΩ | Gen 3 MOS + Diodes | 150 °C | 105 x 62 x 31 mm | Industrial | ||||||
62 mm | Half-Bridge | 1700 V | 310 A | 4.29 mΩ | Gen 3 MOS + Diodes | 150 °C | 105 x 62 x 31 mm | Industrial | ||||||
62 mm | Half-Bridge | 1200 V | 350 A | 4 mΩ | Gen 3 MOS + Diodes | 150 °C | 105 x 62 x 31 mm | Industrial | ||||||
62 mm | Half-Bridge | 1200 V | 300 A | 4 mΩ | Gen 3 MOS | 175 °C | 105 x 62 x 31 mm | Industrial + HV-H3TRB | ||||||
62 mm | Half-Bridge | 1200 V | 400 A | 3.25 mΩ | Gen 3 MOS | 175 °C | 105 x 62 x 31 mm | Industrial + HV-H3TRB | ||||||
62 mm | Half-Bridge | 1200 V | 175 A | 8 mΩ | Gen 3 MOS + Diodes | 150 °C | 105 x 62 x 31 mm | Industrial + HV-H3TRB | ||||||
62 mm | Half-Bridge | 1200 V | 350 A | 4 mΩ | Gen 3 MOS + Diodes | 150 °C | 105 x 62 x 31 mm | Industrial + HV-H3TRB | ||||||
62 mm | Half-Bridge | 1200 V | 530 A | 2.6 mΩ | Gen 3 MOS + Diodes | 150 °C | 105 x 62 x 31 mm | Industrial + HV-H3TRB | ||||||
62 mm | Half-Bridge | 1700 V | 225 A | 8 mΩ | Gen 2 MOS + Diodes | 150 °C | 106 x 62 x 30 mm | Industrial | ||||||
62 mm | Half-Bridge | 1200 V | 300 A | 4.2 mΩ | Gen 2 MOS + Diodes | 150 °C | 106 x 62 x 30 mm | Industrial | ||||||
62 mm | Half-Bridge | 1200 V | 120 A | 13 mΩ | Gen 2 MOS + Diodes | 150 °C | 106 x 62 x 30 mm | Industrial | ||||||
GM | Six-pack (three-phase) | 1200 V | 50 A | 16 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
GM | Six-pack (three-phase) | 1200 V | 50 A | 16 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
GM | Half-Bridge | 1200 V | 160 A | 8 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
GM | Half-Bridge | 1200 V | 160 A | 8 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
GM | Half-Bridge | 1200 V | 141 A | 11 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
GM | Half Bridge (AlN substrate) | 1200 V | 181 A | 8 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
GM | Half Bridge (AlN substrate) | 1200 V | 181 A | 8 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
GM | Half-Bridge | 1200 V | 200 A | 6 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
GM | Half-Bridge | 1200 V | 200 A | 6 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
GM | Half Bridge (AlN substrate) | 1200 V | 200 A | 6 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
GM | Half Bridge (AlN substrate) | 1200 V | 200 A | 6 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
FM | Full-Bridge | 1200 V | 37 A | 32 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 33.8 mm | Industrial | ||||||
FM | Full-Bridge | 1200 V | 37 A | 32 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 33.8 mm | Industrial | ||||||
FM | Full-Bridge | 1200 V | 48 A | 21 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 33.8 mm | Industrial | ||||||
FM | Full-Bridge | 1200 V | 48 A | 21 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 33.8 mm | Industrial | ||||||
FM | Half-Bridge | 1200 V | 84 A | 16 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 33.8 mm | Industrial | ||||||
FM | Half-Bridge | 1200 V | 84 A | 16 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 33.8 mm | Industrial | ||||||
GM | Half-Bridge | 1200 V | 141 A | 11 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Industrial | ||||||
FM | Half-Bridge | 1200 V | 117 A | 11 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 33.8 mm | Industrial | ||||||
FM | Half-Bridge | 1200 V | 117 A | 11 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 33.8 mm | Industrial | ||||||
FM | Six-pack (three-phase) | 1200 V | 30 A | 21 mΩ | Gen 3 | 150 °C | 62.8 mm x 33.8 mm | Industrial | ||||||
FM | Six-pack (three-phase) | 1200 V | 30 A | 21 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 33.8 mm | Industrial | ||||||
FM | Six-pack (three-phase) | 1200 V | 30 A | 32 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 33.8 mm | Industrial |

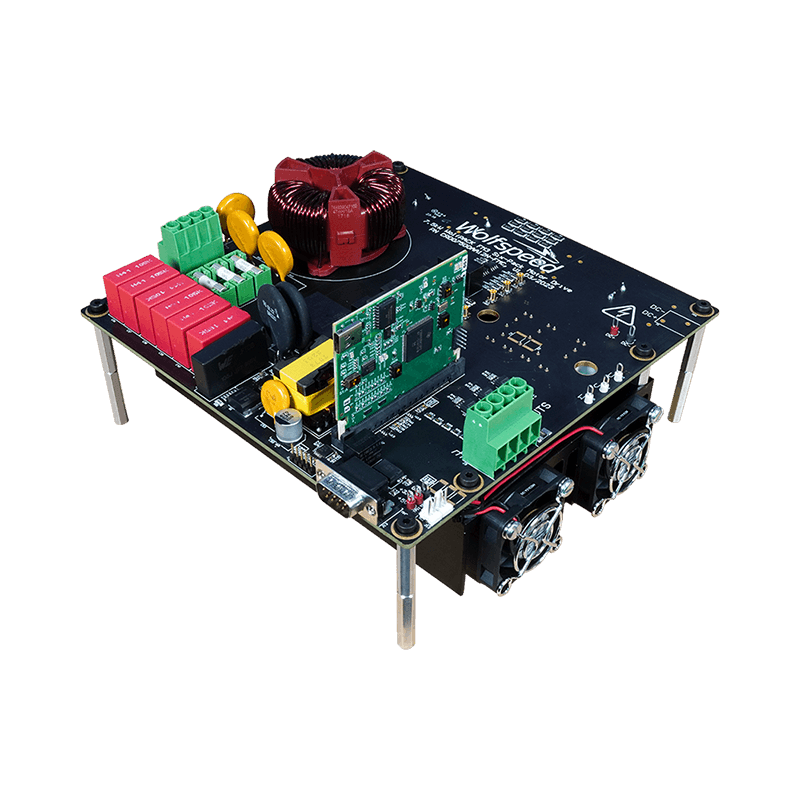

Reference Designs
Reference Designs
Reference Designs - Filter By
Reference Designs
Product SKU | Name | Buy Online | Type | Topology | Power | Discrete/Module | Package | Device SKU(s) | Designed By | View Product |
---|---|---|---|---|---|---|---|---|---|---|
AC to DC | Totem-Pole PFC | 3.6kW | Discrete | TOLL, TO-247-3 | Wolfspeed | |||||
AC to DC, DC to AC | Passive Rectifier and Three-Phase, 2-Level | 7.5kW | Module | FM | Wolfspeed | |||||
DC to AC | Three-Phase, 2-Level | 11kW | Discrete | TO-247-4, TO-263-7 | Wolfspeed | |||||
AC to DC | Three-Phase, 2-Level | 22kW | Discrete | TO-247-4 | Wolfspeed | |||||
DC to AC | Three-Phase, 2-Level | 25kW | Module | FM | Wolfspeed | |||||

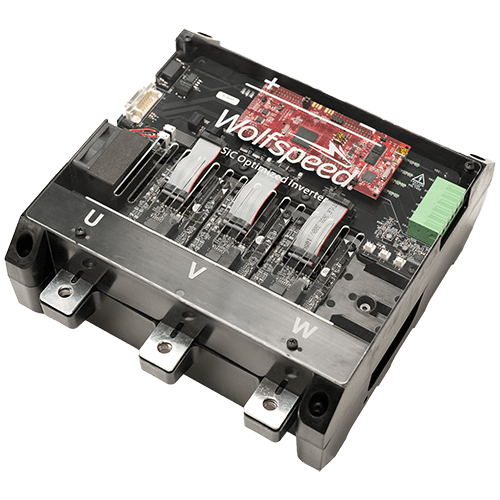

DC to AC | Three-Phase, 2-Level | 200kW | Module | XM | Wolfspeed | |||||
DC to AC | Three-Phase, 2-Level | 250kW | Module | XM | Wolfspeed | |||||
DC to AC | Three-Phase, 2-Level | 300kW | Module | XM | Wolfspeed | |||||

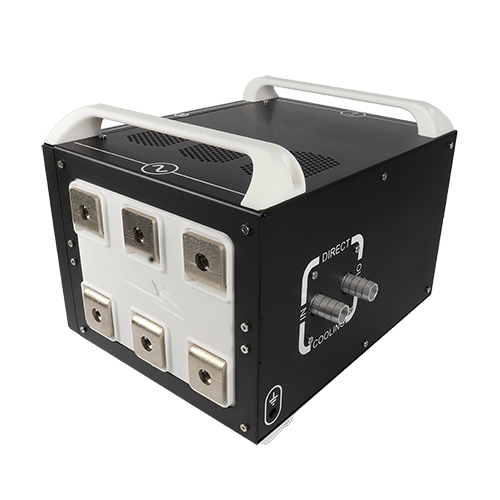

DC to AC | Dual Three-Phase, 2-Level | 600kW | Module | XM | Wolfspeed |
