On-Board Charger

Wolfspeed understands the technological challenges that EVs present for engineers, especially when it comes to power and EV charging solutions.

Ready to Support a Booming Industry

The electric vehicle (EV) market is expected to jump from 3.2 million units in 2019 to nearly 27 million units by the year 2030. Major players in this industry are expected to invest over $350 billion in the near future to grow the electric vehicle market.

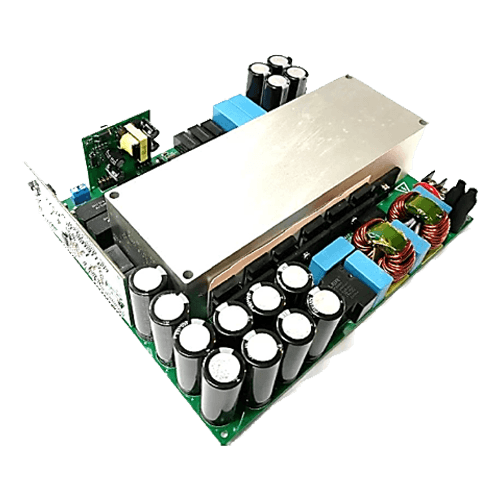

Wolfspeed's 6.6 kW High Power Density Bi-Directional EV On-Board Charger Reference Design

Wolfspeed SiC Power Devices for EV On-Board Battery Charger — Wolfspeed's 6.6 kW High Power Density Bi-Directional EV On-Board Charger Reference Design

A Charging Problem

While electric vehicles are becoming more commonplace, many consumers continue to have concerns about range and charging capabilities. For decades, the consumer driving experience has been powered by fossil fuels, and refueling meant a quick stop at the gas station to top off the tank. The prospect of a lengthy charging process to keep your car traveling down the road or of being limited to using a stand-alone charging station are massive deterrents.

Enter On-Board Battery Chargers

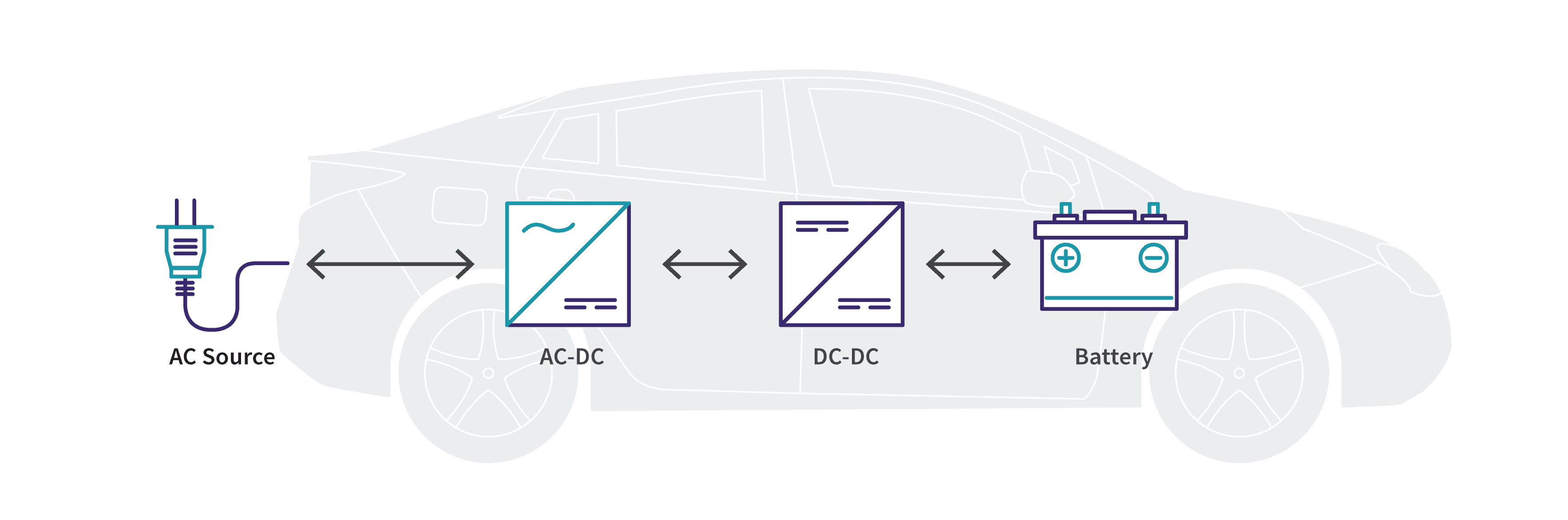

On-board battery chargers are the key to keeping EVs powered—they take AC current from the car owner’s home and convert it to DC power to recharge the battery. They are also often capable of harvesting kinetic energy from the vehicle itself to provide additional charge when braking. But traditional silicon has made these systems very limited in both their output, size and speed.

Wolfspeed SiC Power Components for On-Board Battery Chargers — On-Board Charger (OBC)

A New Level of OBC Capability, Powered by Wolfspeed Silicon Carbide

Traditional silicon has limitations, particularly when it comes to high-power applications like those of on-board charging systems. But Wolfspeed Silicon Carbide (SiC) is uniquely capable of handling higher voltages and currents, taking on even the most challenging of power applications.

Up To

30%

Lower losses

Up To

50%

Higher Power Density

Up To

15%

System Cost Savings

Wolfspeed Silicon Carbide also enables OBCs with bidirectional energy-transferring capabilities. This means automotive manufacturers can design systems that can both receive energy from the grid and give it back, helping to stabilize the electrical grids of the future, or even power an owner’s critical home systems during a power outage.

Wolfspeed Silicon Carbide Products Built to Support OBCs

Wolfspeed products represent the culmination of years of experience and expertise, where quality meets innovation to help bring your design forward. Wolfspeed’s 1200V and 650V Silicon Carbide MOSFETs offer the industry’s lowest drain-to-source on-resistances, enabling up to 50% higher power density, which means more power to charge your battery with a smaller and lighter charger.

E-Series Automotive Discrete Silicon Carbide MOSFETs

No filters selected, showing all 33 products

Filter By

Product SKU	Buy Online	Status	Blocking Voltage	R_DS(ON) at 25°C	Current Rating	T_jmax	Package	Qualification	Technology
E4M0015075J2	Purchase E4M0015075J2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	15 mΩ	156 A	175 °C	TO-263-7 XL	Automotive	E4M
E4M0015075K1	Purchase E4M0015075K1 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	15 mΩ	128 A	175 °C	TO-247-4 LP	Automotive	E4M
E4M0015075U2 New	Purchase E4M0015075U2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	15 mΩ	139 A	175 °C	U2 (TSC)	Automotive	E4M
E4M0025075J2	Purchase E4M0025075J2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	25 mΩ	84 A	175 °C	TO-263-7 XL	Automotive	E4M
E4M0025075K1	Purchase E4M0025075K1 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	25 mΩ	80 A	175 °C	TO-247-4 LP	Automotive	E4M
E4M0025075U2 New	Purchase E4M0025075U2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	25 mΩ	80 A	175 °C	U2 (TSC)	Automotive	E4M
E4M0045075J2	Purchase E4M0045075J2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	45 mΩ	46 A	175 °C	TO-263-7 XL	Automotive	E4M
E4M0045075K1	Purchase E4M0045075K1 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	45 mΩ	42 A	175 °C	TO-247-4 LP	Automotive	E4M
E4M0045075U2 New	Purchase E4M0045075U2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	45 mΩ	44 A	175 °C	U2 (TSC)	Automotive	E4M
E4M0060075J2	Purchase E4M0060075J2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	60 mΩ	36 A	175 °C	TO-263-7 XL	Automotive	E4M
E4M0060075K1	Purchase E4M0060075K1 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	60 mΩ	35 A	175 °C	TO-247-4 LP	Automotive	E4M
E4M0060075U2 New	Purchase E4M0060075U2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	750 V	60 mΩ	36 A	175 °C	U2 (TSC)	Automotive	E4M
E4M0013120K	Purchase E4M0013120K Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Last Time Buy	1200 V	13 mΩ	153 A	175 °C	TO-247-4	Automotive	E4M
E3M0016120K	Purchase E3M0016120K Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	16 mΩ	125 A	175 °C	TO-247-4	Automotive	E3M
E3M0016120U2 New	Purchase E3M0016120U2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	16 mΩ	125 A	175 °C	U2 (TSC)	Automotive	E3M
E3M0021120K	Purchase E3M0021120K Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	21 mΩ	104 A	175 °C	TO-247-4	Automotive	E3M
E3M0021120J2		Active	1200 V	21 mΩ	114 A	175 °C	TO-263-7 XL	Automotive	E3M
E3M0021120U2 New	Purchase E3M0021120U2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	21 mΩ	114 A	175 °C	U2 (TSC)	Automotive	E3M
E3M0032120K	Purchase E3M0032120K Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	32 mΩ	67 A	175 °C	TO-247-4	Automotive	E3M
E3M0032120J2		Active	1200 V	32 mΩ	74 A	175 °C	TO-263-7 XL	Automotive	E3M
E3M0032120U2	Purchase E3M0032120U2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	32 mΩ	74 A	175 °C	U2 (TSC)	Automotive	E3M
E3M0040120K	Purchase E3M0040120K Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	40 mΩ	57 A	175 °C	TO-247-4	Automotive	E3M
E3M0040120J2		Active	1200 V	40 mΩ	63 A	175 °C	TO-263-7 XL	Automotive	E3M
E3M0040120U2	Purchase E3M0040120U2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	40 mΩ	63 A	175 °C	U2 (TSC)	Automotive	E3M
E3M0075120K	Purchase E3M0075120K Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	75 mΩ	32 A	175 °C	TO-247-4	Automotive	E3M
E3M0075120D	Purchase E3M0075120D Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	75 mΩ	32 A	175 °C	TO-247-3	Automotive	E3M
E3M0075120J2		Active	1200 V	75 mΩ	34 A	175 °C	TO-263-7 XL	Automotive	E3M
E3M0075120U2	Purchase E3M0075120U2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	75 mΩ	34 A	175 °C	U2 (TSC)	Automotive	E3M
E3M0160120K	Purchase E3M0160120K Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	160 mΩ	17 A	175 °C	TO-247-4	Automotive	E3M
E3M0160120J2		Active	1200 V	160 mΩ	18 A	175 °C	TO-263-7 XL	Automotive	E3M
E3M0160120U2 New	Purchase E3M0160120U2-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1200 V	160 mΩ	18 A	175 °C	U2 (TSC)	Automotive	E3M
E3M0900170D	Purchase E3M0900170D Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1700 V	900 mΩ	4.4 A	175 °C	TO-247-3	Automotive	E3M
E3M0900170J	Purchase E3M0900170J-TR Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	1700 V	900 mΩ	4.4 A	175 °C	TO-263-7	Automotive	E3M

Additional Discrete Silicon Carbide MOSFETs

View All

No filters selected, showing all 7 products

Filter By

Product SKU	Buy Online	Status	Blocking Voltage	R_DS(ON) at 25°C	Current Rating	T_jmax	Package	Qualification	Technology
C3M0025065D	Purchase C3M0025065D Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	650 V	25 mΩ	97 A	175 °C	TO-247-3	Industrial	C3M
C3M0025065K	Purchase C3M0025065K Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	650 V	25 mΩ	97 A	175 °C	TO-247-4	Industrial	C3M
C3M0045065D	Purchase C3M0045065D Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	650 V	45 mΩ	49 A	175 °C	TO-247-3	Industrial	C3M
C3M0045065K	Purchase C3M0045065K Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	650 V	45 mΩ	49 A	175 °C	TO-247-4	Industrial	C3M
C3M0060065D	Purchase C3M0060065D Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	650 V	60 mΩ	29 A	175 °C	TO-247-3	Industrial	C3M
C3M0060065J		Active	650 V	60 mΩ	36 A	175 °C	TO-263-7	Industrial	C3M
C3M0060065K	Purchase C3M0060065K Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	650 V	60 mΩ	37 A	175 °C	TO-247-4	Industrial	C3M

Reference Designs to Accelerate Your Time to Market

Wolfspeed not only offers the solutions to bring your design into the future of automotive technology, but our Reference Designs can help you accelerate your design cycle process. Reference Designs include full system design resource package with schematics, BOM, and more.

Featured Reference Designs for On-Board Chargers

View All

No filters selected, showing all 6 products

Filter By

Product SKU	Name	Type	Topology	Power	Discrete/Module	Package	Device SKU(s)	Designed By
CRD-06600DD065N	6.6 kW High Frequency LLC	DC to DC	LLC	6.6kW	Discrete	TO-247-3	C3M0060065D C6D10065A	Wolfspeed
TIDA-01604	6.6 kW Bridgeless Totem-Pole PFC	AC to DC	Interleaved Totem-Pole PFC	6.6kW	Discrete	TO-247-3, TO-247-4	C3M0065100K	Texas Instruments
CRD-06600FF065N-K	6.6 kW Bi-Directional Totem-Pole PFC and CLLC, High Power Density	AC to DC, DC to DC	Totem-Pole PFC and CLLC	6.6kW	Discrete	TO-247-4, TO-247-3	C3M0060065K C3M0060065D	Wolfspeed
TIDA-010054	10 kW Phase Shift DAB	DC to DC	DAB (Dual Active Bridge)	10kW	Discrete	TO-247-4	C3M0075120K C3M0030090K	Texas Instruments
CRD-22DD12N	22 kW Bi-Directional CLLC	DC to DC	CLLC	22kW	Discrete	TO-247-4	C3M0032120K E3M0032120K	Wolfspeed
CRD-22AD12N	22 kW Bi-Directional Active Front End (AFE)	AC to DC	Three-Phase 2-Level	22kW	Discrete	TO-247-4	C3M0032120K	Wolfspeed
