Gate Driver Boards

Browse our portfolio of companion gate driver evaluation boards. These boards help you quickly evaluate our silicon carbide product functionality with recommended gate drivers from industry leading manufacturers. All design files available are complimentary, so that you can modify as-needed to fit your specific design requirement and get to market quicker.

Products

No filters selected, showing all 23 products

Filter By

Product SKU	Buy Online	Status	Platform	Designed By	Gate Driver	Output Channels	Gate Power	Default V_GS Voltage Rails	Miller Clamp	Short-Circuit Protection	Temperature Feedback	Interface Tool

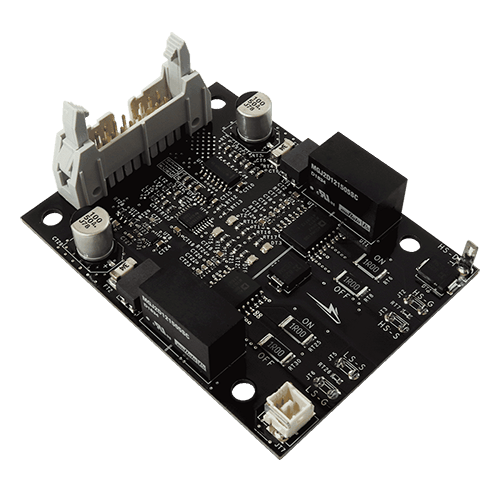

CGD1200HB2P-BM2	Purchase CGD1200HB2P-BM2 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	62mm	Wolfspeed	Analog Devices ADuM4135	2	2W	+20 V / -5 V	Yes	Yes	No	CGD12HB00D
CGD1200HB2P-BM3	Purchase CGD1200HB2P-BM3 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	62mm	Wolfspeed	Analog Devices ADuM4135	2	2W	+15 V / -4 V	Yes	Yes	No	CGD12HB00D
CGD1700HB2P-BM2	Purchase CGD1700HB2P-BM2 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	62mm	Wolfspeed	Analog Devices ADuM4146	2	2W	+20 V / -5 V	Yes	Yes	No	CGD12HB00D

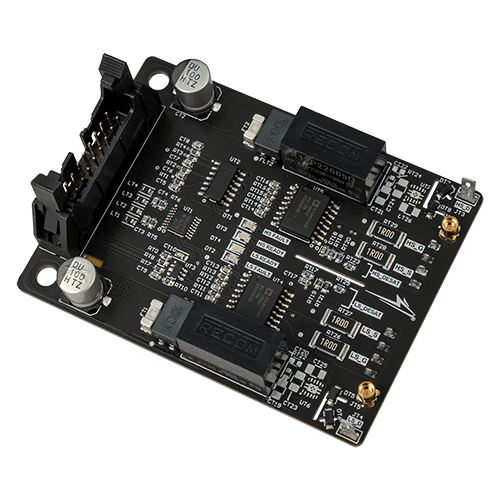

CGD1700HB2P-BM3	Purchase CGD1700HB2P-BM3 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	62mm	Wolfspeed	Analog Devices ADuM4146	2	2W	+15 V / -4 V	Yes	Yes	No	CGD12HB00D

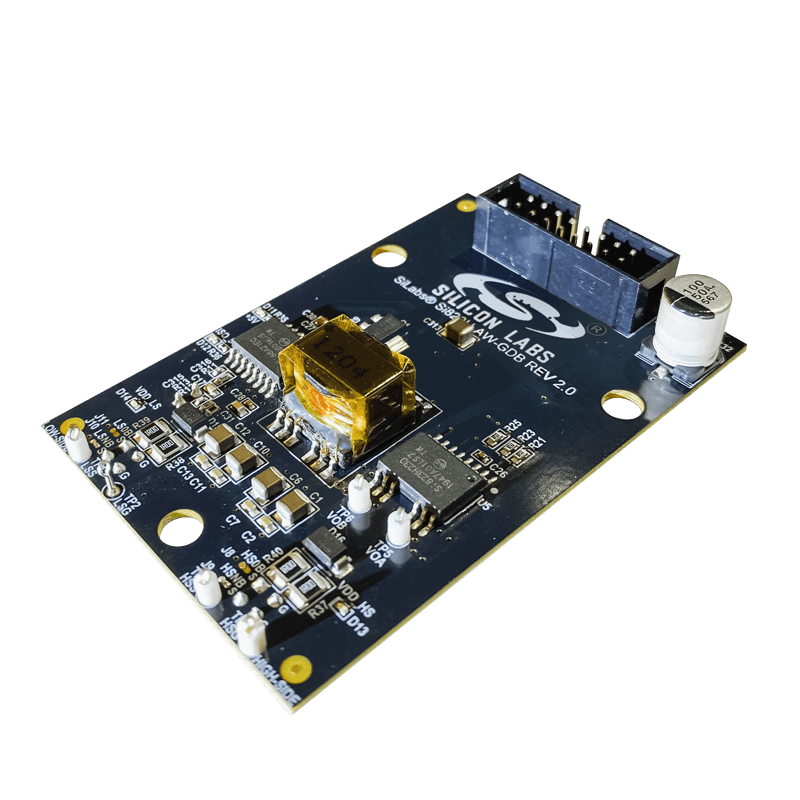

Si823H-AAWA-KIT		Active	FM, GM	Skyworks	Skyworks Si823Hx	2	1W	+15 V / -3.5 V	No	No	Yes	CGD12HB00D
Si823H-ABWA-KIT		Active	FM, GM	Skyworks	Skyworks Si823Hx	2	1W	+15 V / -3.5 V	No	No	Yes	CGD12HB00D
CGD1700HB2M-UNA	Purchase CGD1700HB2M-UNA Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	FM, GM, SpeedVal Kit	Wolfspeed	Texas Instruments UCC21710	2	2W	+15 V / -3 V	Yes	Yes	Yes	CGD12HB00D
CGD1700HB2M-UNA-R1 New	Purchase CGD1700HB2M-UNA-R1 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	FM, GM, SpeedVal Kit	Wolfspeed	Texas Instruments UCC21710	2	2W	+15 V / -4 V	Yes	Yes	Yes	CGD12HB00D
CGD1700HB2M-UNA-R2 New	Purchase CGD1700HB2M-UNA-R2 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	FM, GM, SpeedVal Kit	Wolfspeed	Texas Instruments UCC21710	2	2W	+18 V / -4 V	Yes	Yes	Yes	CGD12HB00D

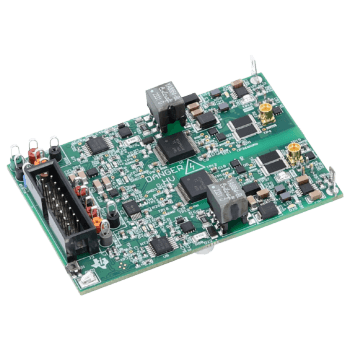

UCC2189X5Y		Active	FM, GM, SpeedVal Kit	Texas Instruments	Texas Instruments UCC2189X5Y	2		+20 V / -5.5 V	Yes	Yes	No	CGD12HB00D

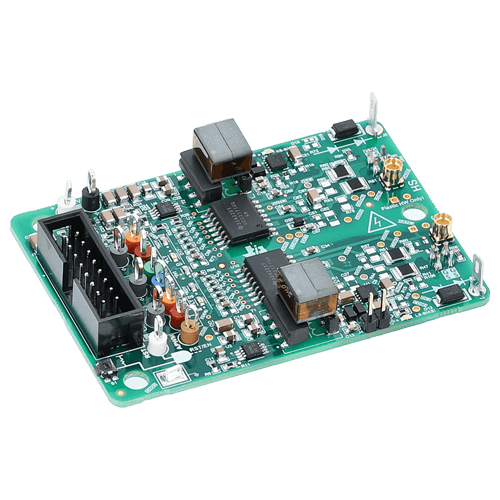

UCC21710QDWEVM-054		Active	FM, GM, SpeedVal Kit	Texas Instruments	Texas Instruments UCC21710	2	2W	+15 V / -3 V	Yes	Yes	Yes	CGD12HB00D

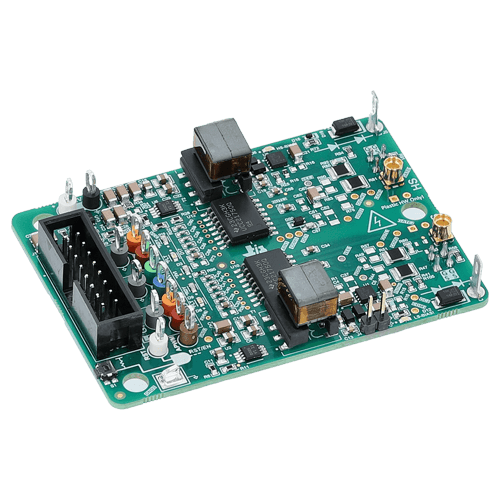

UCC21750QDWEVM-054		Active	FM, GM, SpeedVal Kit	Texas Instruments	Texas Instruments UCC21750	2	2W	+15 V / -3 V	Yes	Yes	Yes	CGD12HB00D
Si823H-ACWA-KIT		Active	FM, GM, SpeedVal Kit	Skyworks	Skyworks Si823Hx	2	1W	+15 V / -3.5 V	No	No	Yes	CGD12HB00D

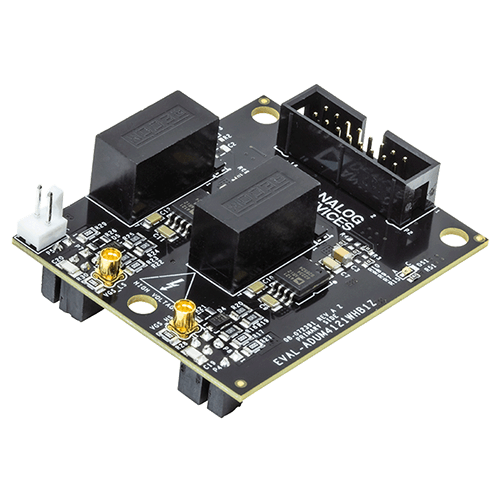

EVAL-ADUM4121WHB1Z		Active	FM, GM, SpeedVal Kit	Analog Devices	Analog Devices ADuM4121	2	2W	+15 V / -3 V	Yes	No	Yes	CGD12HB00D

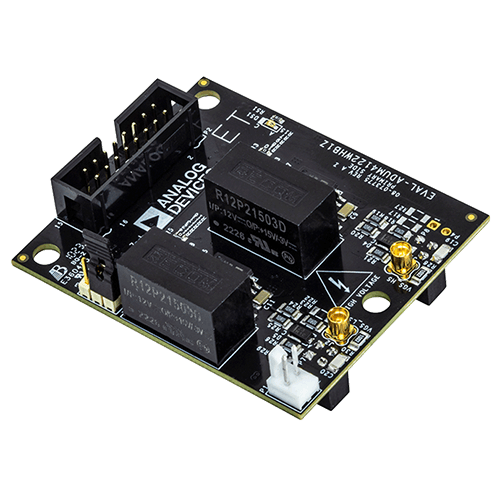

EVAL-ADUM4122WHB1Z		Active	FM, GM, SpeedVal Kit	Analog Devices	Analog Devices ADuM4122	2	2W	+15 V / -3 V	No	No	Yes	CGD12HB00D

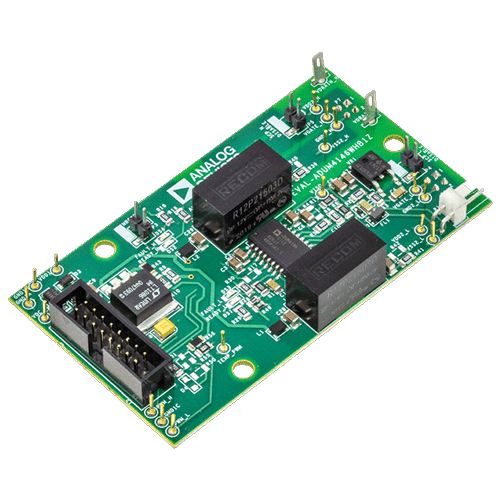

EVAL-ADUM4146WHB1Z		Active	FM, GM, SpeedVal Kit	Analog Devices	Analog Devices ADuM4146	2	2W	+15 V / -3 V	Yes	Yes	Yes	CGD12HB00D

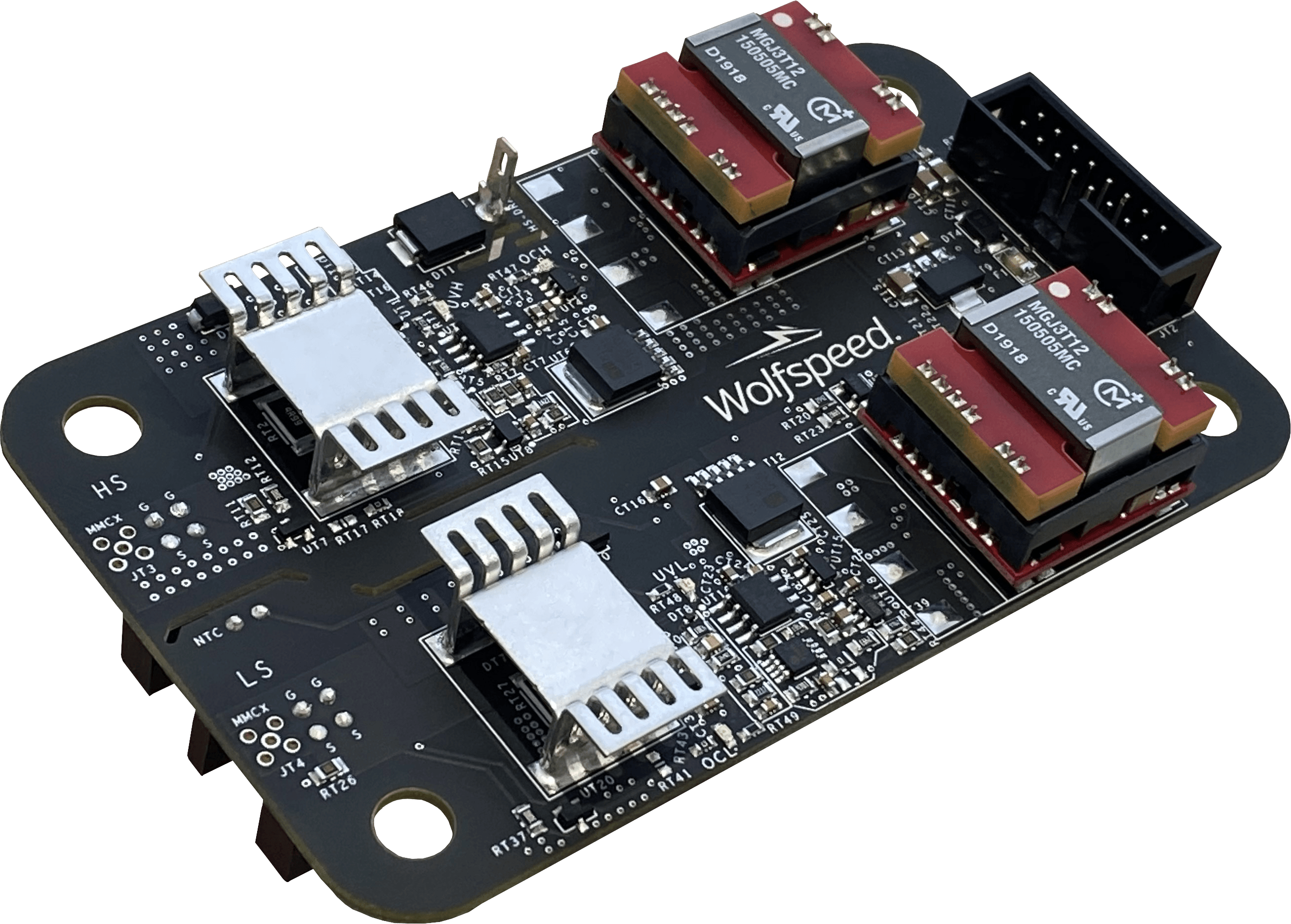

CGD1700HB3P-HM3	Purchase CGD1700HB3P-HM3 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	HM3	Wolfspeed	IXYS IXDD614YY	2	3W	+15 V / -4 V	No	Yes	Yes	CGD12HB00D

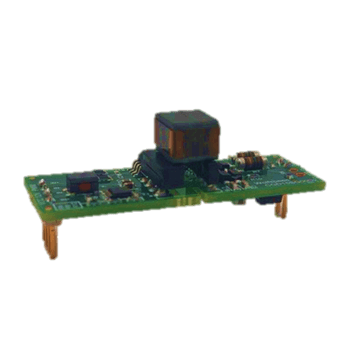

CGD15SG00D2	Purchase CGD15SG00D2 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	NA	Wolfspeed	Texas Instruments UCC23514MDWVR	1	2W	+15 V / -3 V	Yes	No	No	NA

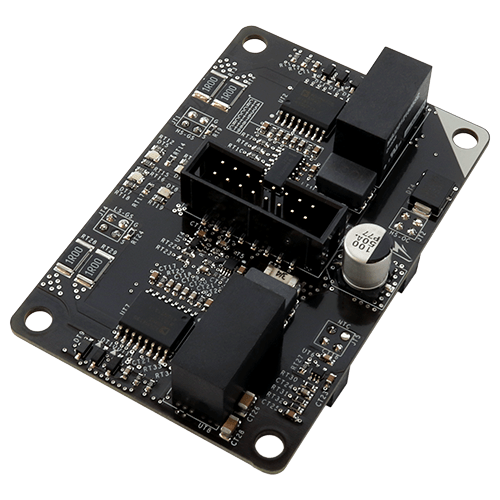

CGD12HBXMP	Purchase CGD12HBXMP Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	NRND	XM	Wolfspeed	Analog Devices ADuM4135	2	2W	+15 V / -4 V	Yes	Yes	Yes	CGD12HB00D

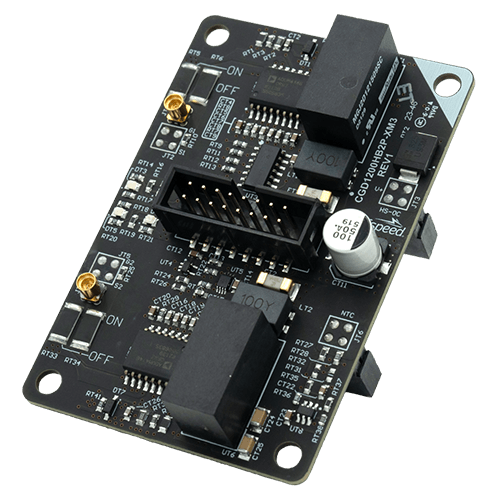

CGD1200HB2P-XM3 New	Purchase CGD1200HB2P-XM3 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	XM	Wolfspeed	Analog Devices ADuM4146	2	2W	+15 V / -4 V	Yes	Yes	Yes	CGD12HB00D

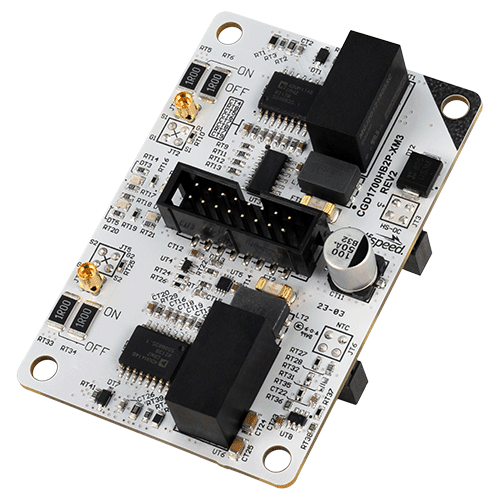

CGD1700HB2P-XM3	Purchase CGD1700HB2P-XM3 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	XM	Wolfspeed	Analog Devices ADuM4146	2	2W	+15 V / -4 V	Yes	Yes	Yes	CGD12HB00D

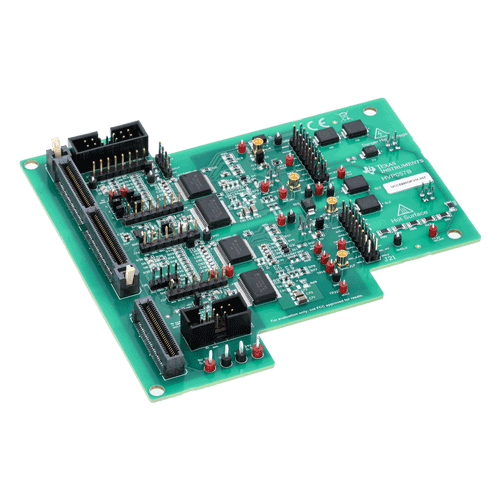

UCC5880QEVM-057		Active	XM	Texas Instruments	Texas Instruments UCC5880-Q1	2	2W	+15 V / -4 V	Yes	Yes	Yes	NA

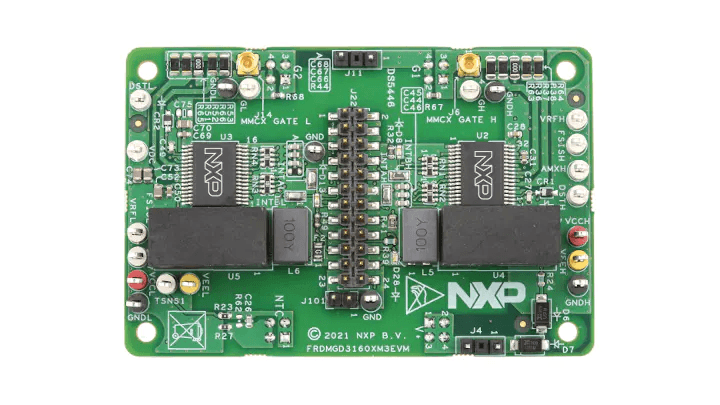

FRDMGD3160XM3EVM		Active	XM	NXP	NXP MC33GD3160	2	2W	+15 V / -3.7 V	Yes	Yes	Yes	CGD12HB00D

Featured Resources

Documents, Tools & Support

Technical & Sales Documents
Tools & Support

Documents

31 Documents Available

Document Type	Document Name	Last Updated
User Guide	PRD-09753: 62 mm Gate Driver User Guide (PDF) New	02/2026
User Guide	PRD-09712: CGD12HBXMP Gate Driver User Guide (PDF)	12/2025
User Guide	PRD-07128: XM Module Signal Pinout Clarification Guide (PDF)	12/2025
User Guide	PRD-09365: CGD1700HB3P-HM3 Common-Source User Guide (PDF)	12/2025
User Guide	PRD-06992: CGD1700HB2M-UNA Dual Channel Differential Isolated Gate Driver Board User Guide (PDF)	10/2025
User Guide	PRD-09537: CGD1700HB2P-XM3 Gate Driver User Guide (PDF)	09/2025
User Guide	PRD-02302: Wolfspeed Wolfpack Mounting Instructions & PCB Requirements User Guide (PDF)	04/2025
User Guide	PRD-07933: Power Module Thermal Interface Material Application User Guide (PDF)	03/2025
User Guide	PRD-08391: CGD15SG00D2 Gate Driver for Wolfspeed’s Gen 3 SiC MOSFETs User Guide (PDF)	10/2024
User Guide	PRD-07913: Wolfspeed Power Module SPICE Models User Guide (PDF)	12/2023
User Guide	PRD-06983: BM Module Platform Mounting User Guide (PDF)	12/2023
User Guide	PRD-07745: XM Module Platform Mounting User Guide (PDF)	10/2023
Application Notes	PRD-09301: Gate Driver Design for SiC Power Modules (PDF)	05/2025
Application Notes	PRD-07845: Power Module Baseplate Capacitance and Electromagnetic Compatibility (PDF)	03/2025
Application Notes	PRD-05652: Mounting Recommendations and Thermal Measurement for Wolfspeed® SiC Power Devices in Through-Hole Packages (PDF)	02/2025
Application Notes	PRD-04814: Design Options for Wolfspeed® Silicon Carbide MOSFET Gate Bias Power Supplies (PDF)	01/2025
Application Notes	PRD-06752: PCB Layout Techniques for Discrete SiC MOSFETs (PDF)	09/2024
Application Notes	PRD-08367: EV Charging Power Topologies Design Guidebook (PDF)	01/2024
Application Notes	PRD-03043: Measuring Switching and Conduction Losses in LTspice® Simulation Software (PDF)	01/2024
Application Notes	PRD-08376: Thermal Characterization Methods and Applications (PDF)	01/2024
Application Notes	PRD-07968: Wolfspeed WolfPACK™ Dynamic Performance (PDF)	01/2024
Application Notes	PRD-06701: Thermal Management of Bottom-Side Cooled Surface-Mount Devices & Design Considerations (PDF)	12/2023
Application Notes	PRD-08296: SiC MOSFET Short Circuit Events (PDF)	11/2023
Application Notes	PRD-06379: Environmental Considerations for Power Electronics Systems (PDF)	08/2023
Application Notes	PRD-06933: Capacitance Ratio and Parasitic Turn-on (PDF)	01/2023
Application Notes	PRD-05653: Recommended Solder Profiles for Power Products (PDF)	09/2022
Application Notes	PRD-05641: Designing with Silicon Carbide in Energy Storage Applications (PDF)	02/2022
Application Notes	PRD-02441: Design Options for Wolfspeed® Silicon Carbide MOSFET Gate Bias Power Supplies (PDF)	11/2021
Test Report	PRD-02344: SiC MOSFET Short-Circuit Protection Using Skyworks™ Si828x Gate Driver (PDF)	03/2022
White Papers	Designed to Last, Even in the Harshest Environments (PDF) New	11/2025
White Papers	Enhancing System Durability with Advanced Packaging for Silicon Carbide (PDF)	11/2025
