Companion Parts

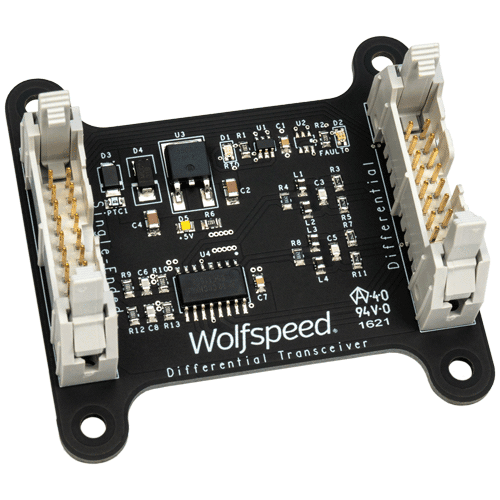

CGD12HB00D
Differential Transceiver Daughter Board Companion Tool for Differential Gate Drivers
Many of Wolfspeed's power module gate driver evaluation tools are designed with differential signals to enable high noise immunity. If you prefer to work with single-ended signals, this transceiver will help you achieve the conversion in your lab.
Documents, Tools, & Support
- Technical & Sales Documents
- Tools & Support
Documents
Document Type | Document Name | Last Updated |
|---|---|---|
| Data Sheets | Differential Transceiver Companion Tool
| 01/2024 |
| Design Files | 06/2019 |
