Evaluation Kits

Wolfspeed understands that system designers want to perform characterization in their own labs when working with a new product. To help reduce design resource investment and enable fast characterization of our products, Wolfspeed offers a wide array of Evaluation Kits to help you better understand the capability of our silicon carbide discrete and module packages.

Featured Resources

Design Tools

SpeedFit Design Simulator LTspice & PLECS Models SpeedVal™ Kit Modular Evaluation Platform

Technical Support

Power Applications Forum

Featured Application Notes

Products

Evaluation Kits

No filters selected, showing all 16 products

Evaluation Kits - Filter By

Evaluation Kits

Name	Topology	Status	Package	Designed By	Product SKU

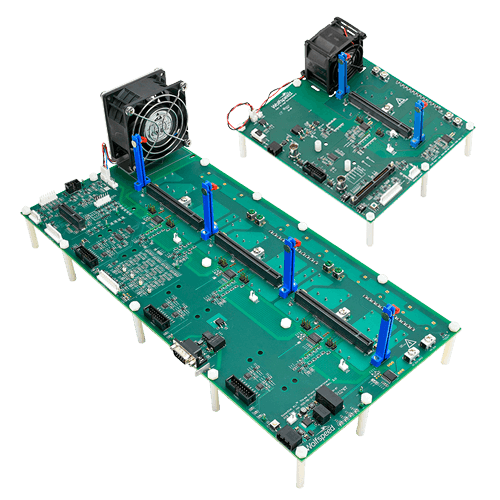

SpeedVal™ Kit Modular Evaluation Platform	DC to DC, Dynamic Characterization		All Discrete Devices	Wolfspeed	SpeedVal Kit

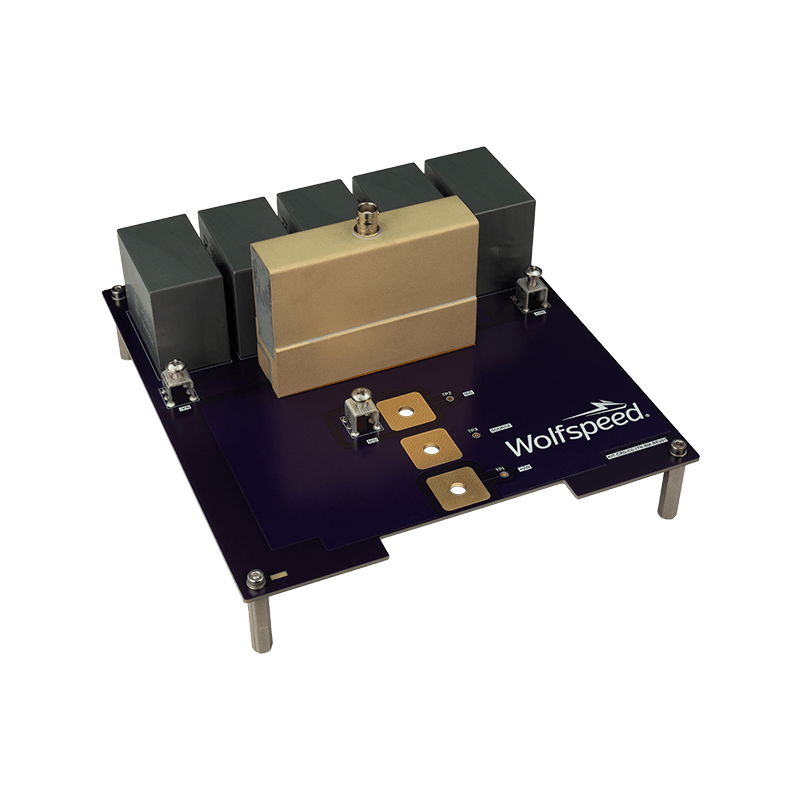

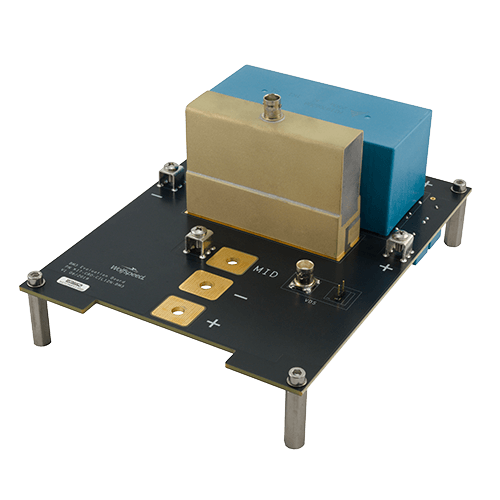

Dynamic Characterization Evaluation Tool Optimized for the 1700 V 62 mm (BM) Module Platform	Dynamic Characterization	Available for Purchase	BM2, BM3 (62mm)	Wolfspeed	KIT-CRD-CIL17N-BM
Dynamic Characterization Evaluation Tool Optimized for the 62mm (BM) Module Platform	Dynamic Characterization	Available for Purchase	BM2, BM3 (62mm)	Wolfspeed	KIT-CRD-CIL12N-BM

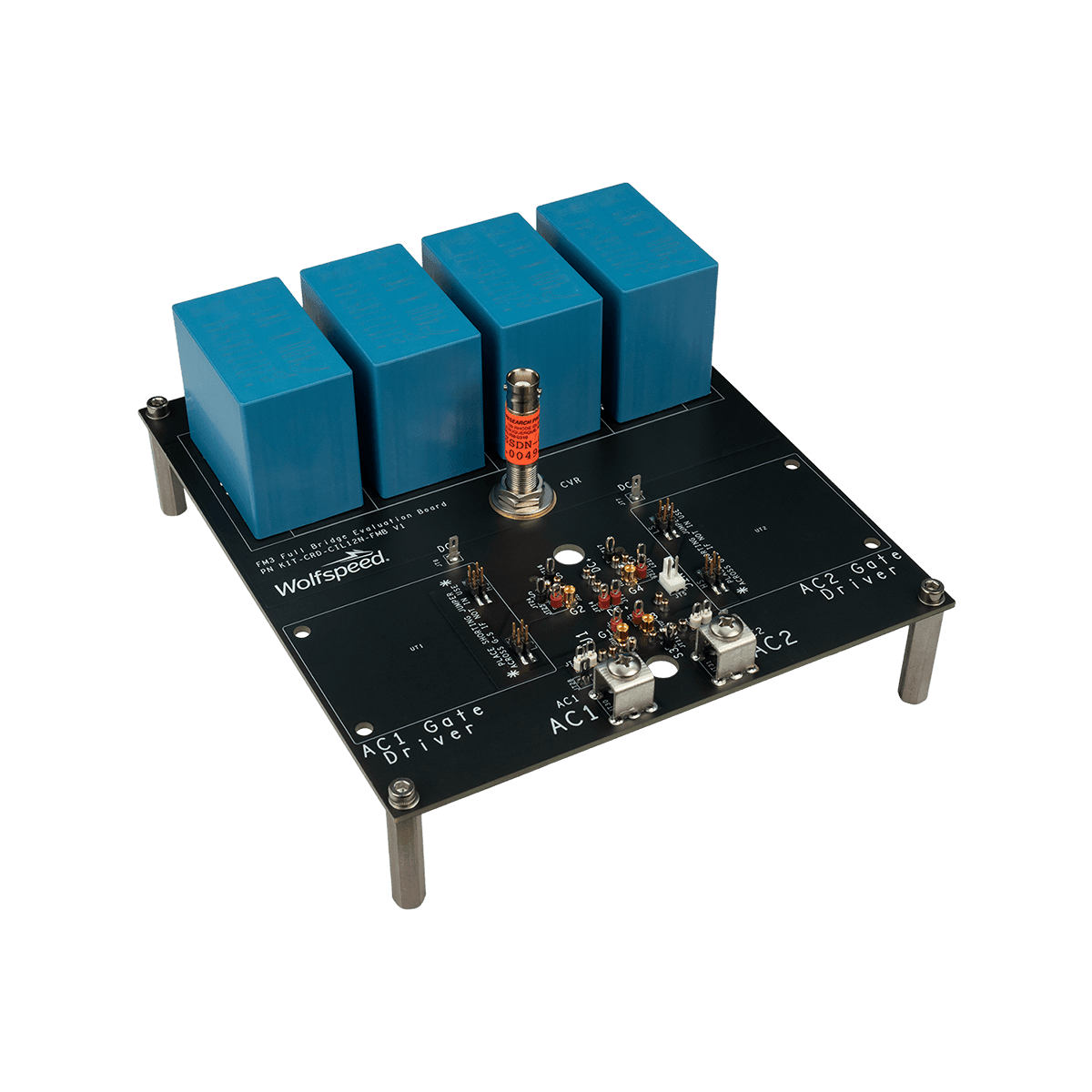

Dynamic Performance Evaluation Board for the Wolfspeed WolfPACK™ Full-Bridge Module Platform	Dynamic Characterization	Available for Purchase	FM	Wolfspeed	KIT-CRD-CIL12N-FMB

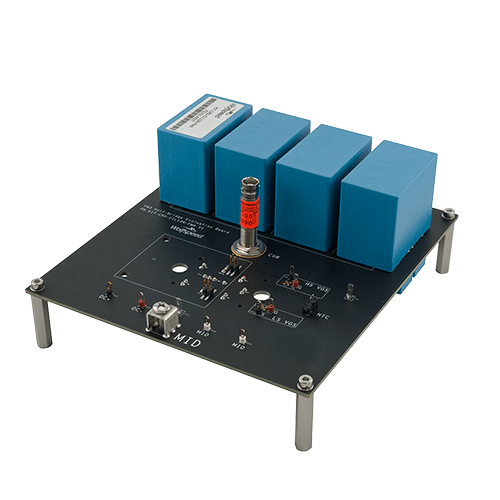

Dynamic Characterization Evaluation Tool Optimized for the Wolfspeed WolfPACK™ Half Bridge Module Platform	Dynamic Characterization	Available for Purchase	FM	Wolfspeed	KIT-CRD-CIL12N-FMA

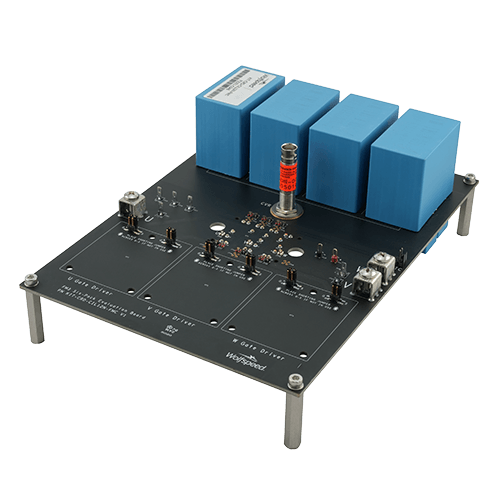

Dynamic Characterization Evaluation Tool Optimized for the Wolfspeed WolfPACK™ Six-Pack Platform	Dynamic Characterization	Available for Purchase	FM	Wolfspeed	KIT-CRD-CIL12N-FMC

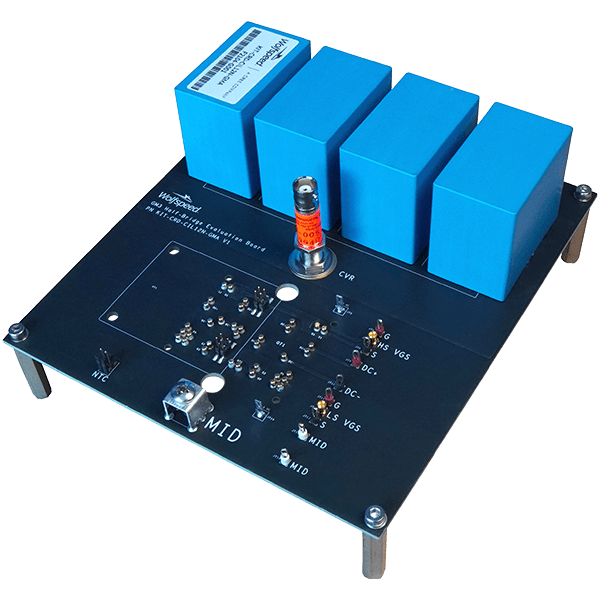

Dynamic Characterization Evaluation Tool Optimized for the Wolfspeed WolfPACK™ GM3 Half Bridge Module Platform	Dynamic Characterization	Available for Purchase	GM	Wolfspeed	KIT-CRD-CIL12N-GMA
Dynamic Characterization Evaluation Tool Optimized for the 1700 V HM High Performance 62mm (HM) Module Platform	Dynamic Characterization	Available for Purchase	HM	Wolfspeed	KIT-CRD-CIL17N-HM3

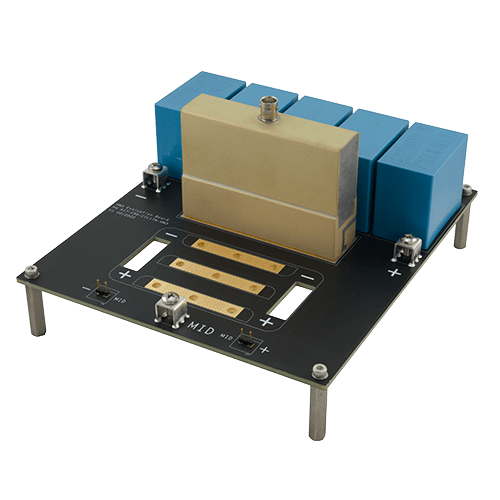

Dynamic Characterization Evaluation Tool Optimized for the HM High Performance 62mm (HM) Module Platform	Dynamic Characterization	Available for Purchase	HM	Wolfspeed	KIT-CRD-CIL12N-HM3
Buck Boost Evaluation Board for 1200V Silicon Carbide C3M™ MOSFET in a TO-247-X Package	DC to DC, Dynamic Characterization	Paper Design Only	TO-247-3, TO-247-4	Wolfspeed	KIT-CRD-3DD12P
Buck Boost Evaluation Board for 650 V Silicon Carbide C3M™ MOSFET in a TO-247-X Package	DC to DC, Dynamic Characterization	Paper Design Only	TO-247-3, TO-247-4	Wolfspeed	KIT-CRD-3DD065P

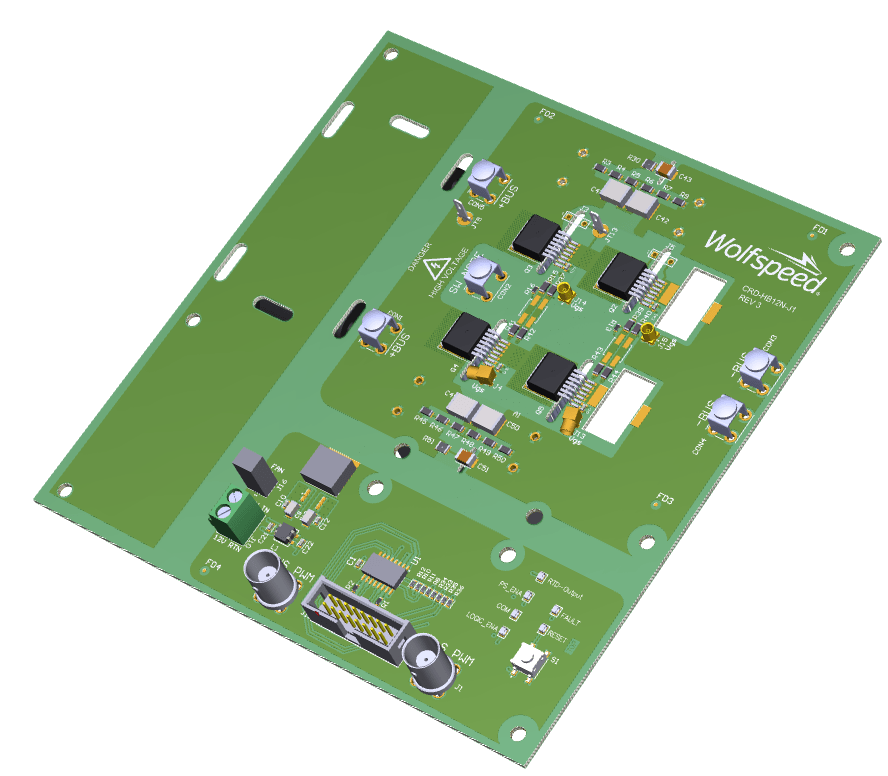

Evaluation Board For Paralleling 1200V C3M Silicon Carbide MOSFETs in a 7-pin TO-263 Package	DC to DC, Dynamic Characterization	Paper Design Only	TO-263-7	Wolfspeed	KIT-CRD-HB12N-J1
Evaluation Board for 900 V Silicon Carbide C3M™ MOSFET in a 7-pin D2PAK (TO-263-7L)	Dynamic Characterization	Paper Design Only	TO-263-7	Wolfspeed	KIT-CRD-8FF90P
Evaluation Board for 650V Silicon Carbide C3M™ MOSFET in a 7-pin D2PAK (TO-263-7L)	Dynamic Characterization	Paper Design Only	TO-263-7	Wolfspeed	KIT-CRD-8FF65P

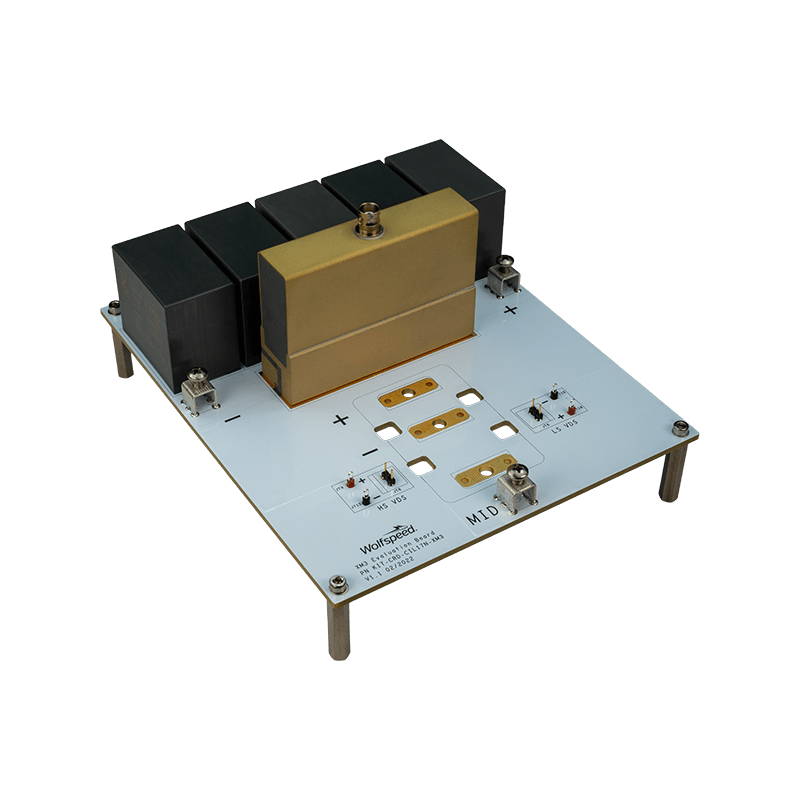

Dynamic Characterization Evaluation Tool Optimized for the Wolfspeed 1700 V XM Half-Bridge Module Platform	Dynamic Characterization	Available for Purchase	XM	Wolfspeed	KIT-CRD-CIL17N-XM

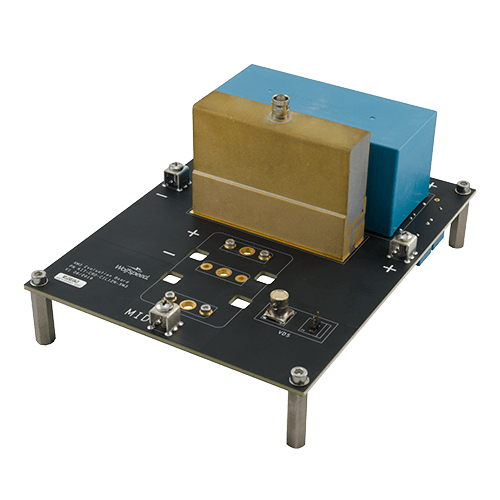

Evaluation Tool for the XM3 Module Platform	AC to DC, Dynamic Characterization	Available for Purchase	XM	Wolfspeed	KIT-CRD-CIL12N-XM3
