Specifications
- Gate resistors onboard
- Heatsink preassembled on board
- BNC connector for lower VDS measurement
- MMCX connectors for VGS and IDS measurement
- Miller clamp transistor supported
- High-Bandwidth current sensor

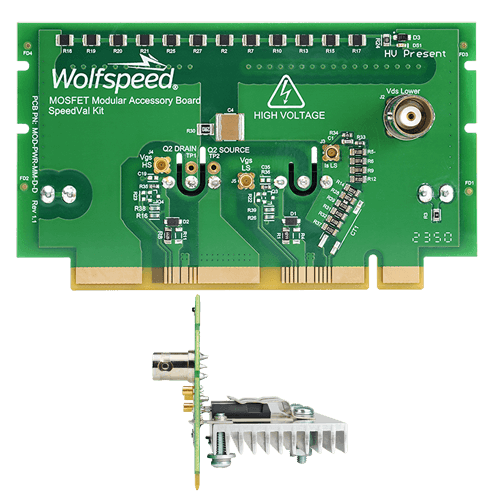

Front and side view of the TO-247-3 package
MOD-PWR-MM-C3M0075120D
Half-Bridge arrangement with high-bandwidth current sensing in a TO-247-3 package
Wolfspeed's MOD-PWR-MM-C3M0075120D is a 1200 V and 75 mΩ MOSFET modular accessory board in a TO-247-3 package designed for Wolfspeed's SpeedVal™ Kit Modular Evaluation Platform.
Silicon Carbide MOSFETs in a TO-247-3 package can provide the highest power levels and offer flexibility in system design and heatsinking. The SpeedVal™ Kit TO-247-3 power daughter cards feature two MOSFETs arranged in a half-bridge configuration. The unique card edge interface provides low inductance while greatly simplifying the process of swapping out components, enabling high-quality measurements and quick comparisons between different devices. Power Daughter Cards are optimized for making accurate high-bandwidth current and voltage measurements.
An on-board current shunt can be optimized for highly accurate dynamic switching tests, or high-power thermal testing. The coaxial MMCX connectors for VGS and IDS and BNC connectors for VDS provide noise-free measurements to improve accuracy and simplify gate drive optimization.
The power daughter cards include a pre-assembled heatsink which aligns with a fan on the motherboard to enable high-power testing.
SpeedVal™ Kit Modular Evaluation Platform Power Daughter Cards – TO-247-3
No filters selected, showing all 1 products
SpeedVal™ Kit Modular Evaluation Platform Power Daughter Cards – TO-247-3
Product SKU | Buy Online | User Guide | Design Files | Status | Upper Devices | Lower Devices | Blocking Voltage | RDS(ON) at 25°C | Package | View Product |
|---|---|---|---|---|---|---|---|---|---|---|
MOD-PWR-MM-C3M0075120D | Active | 1200 V | 75 mΩ | TO-247-3 |
Product Details
What's Included
- Power Daughter Card
- Complete design files
Purchase Separately
- Motherboards (required)
- All Power Daughter Cards (required)
- Gate Drive Card (required)
- Control Card (optional)
- Accessories (optional)
