Reference Designs

Wolfspeed offers time-saving Reference Designs for some of the most in-demand silicon carbide devices in power systems – Inverters, power converters, chargers and many more. These Reference Designs come complete with application notes, user guides and design files to allow designers to create rugged and reliable systems with best-in-class power density, performance and efficiency. Wolfspeed partners with experts in system integration to offer a wider selection of applications and power topologies built with the latest components. Our Partner reference Designs are developed and supported by our partners in collaboration with Wolfspeed.
  • English
  • 简体中文
  • 繁體中文

Products

Reference Designs

No filters selected, showing all 28 products

Reference Designs - Filter By

Reference Designs

Product SKU
Name
Buy Online
Type
Topology
Power
Discrete/Module
Package
Device SKU(s)
Designed By
View Product
TIDA-050063
New
Solid-State Relay Active Precharge
DC to DC
Buck
Discrete
TO-247-4
E3M0075120K
Texas Instruments
CRD-15DD17P
15 W Flyback Auxiliary Power Supply
DC to DC
Flyback
0.015kW
Discrete
TO-263-7
C2M1000170J
Wolfspeed
CRD-02AD065N
2.2 kW Bridgeless Totem-Pole PFC
AC to DC
Totem-Pole PFC
2.2kW
Discrete
TO-247-3, TO-263-7
C3M0060065D
C3M0060065J
Wolfspeed
CRD-03600AD065E-L
3.6 kW Bridgeless Totem-Pole PFC with Synchronous SiC MOSFETs
AC to DC
Totem-Pole PFC
3.6kW
Discrete
TOLL, TO-247-3
C3M0045065L
C3M0015065D
Wolfspeed
TD-70-120VDC-120VAC-5kW
5 kW Boost and Pure Sine Wave Inverter
DC to DC, DC to AC
Boost, Full Bridge Single Phase Inverter
5kW
Discrete
TO-247-4, TO-247-3
C3M0015065K
C6D50065D
Telcodium
CRD-06600DD065N
6.6 kW High Frequency LLC
DC to DC
LLC
6.6kW
Discrete
TO-247-3
C3M0060065D
C6D10065A
E3M0060065K
E3M0060065D
Wolfspeed
TIDA-01604
6.6 kW Bridgeless Totem-Pole PFC
AC to DC
Interleaved Totem-Pole PFC
6.6kW
Discrete
TO-247-3, TO-247-4
C2M0025120D
C3M0065100K
Texas Instruments
CRD-06600FF10N
6.6 kW Bi-Directional Totem-Pole PFC and CLLC, High Efficiency
AC to DC, DC to DC
Totem-Pole PFC and CLLC
6.6kW
Discrete
TO-247-4
C3M0065100K
Wolfspeed
TIDM-02002

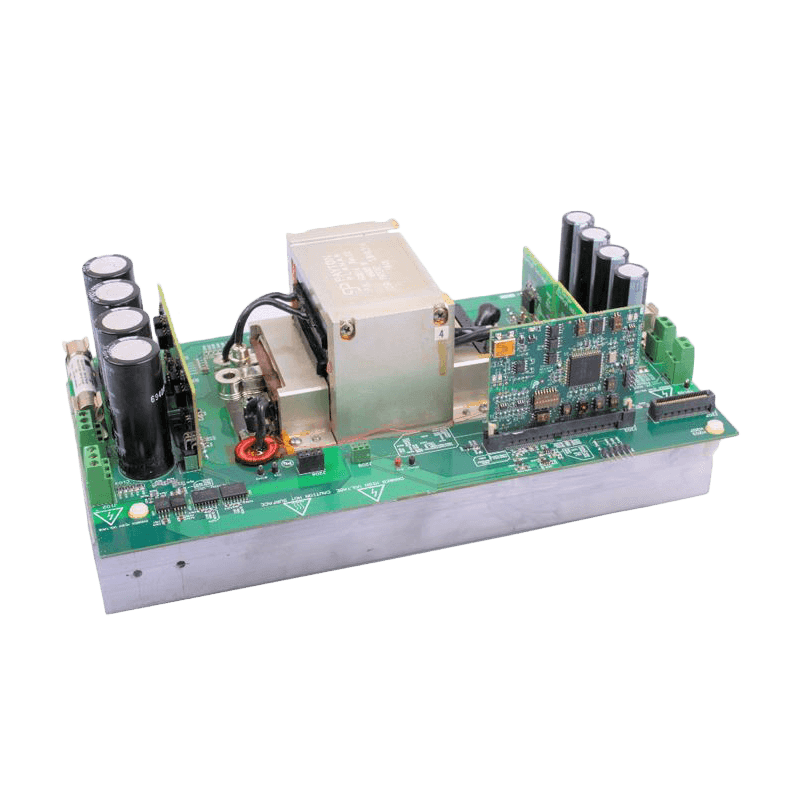

6.6 kW Bi-Directional CLLLC
DC to DC
CLLLC
6.6kW
Discrete
TO-247-4
C3M0030090K
Texas Instruments
CRD-06600FF065N-K
6.6 kW Bi-Directional Totem-Pole PFC and CLLC, High Power Density
AC to DC, DC to DC
Totem-Pole PFC and CLLC
6.6kW
Discrete
TO-247-4, TO-247-3
C3M0060065K
C3M0060065D
E3M0060065K
E3M0060065K
Wolfspeed
CRD07500AA12N-FMC
7.5 kW FM3 Three-Phase Motor Drive
AC to DC, DC to AC
Passive Rectifier and Three-Phase, 2-Level
7.5kW
Module
FM
CCB032M12FM3
Wolfspeed
TIDA-010054

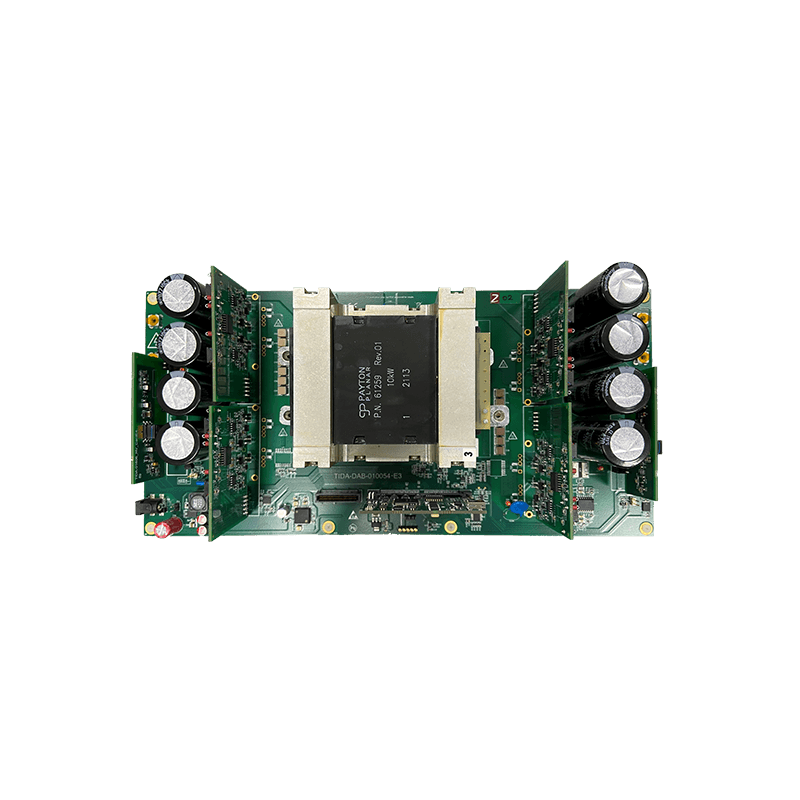

10 kW Phase Shift DAB
DC to DC
DAB (Dual Active Bridge)
10kW
Discrete
TO-247-4
C3M0016120K​
C3M0030090K
Texas Instruments
CRD-11DA12N-K
New
11 kW High Efficiency Three-Phase Motor Drive Inverter
DC to AC
Three-Phase, 2-Level
11kW
Discrete
TO-247-4, TO-263-7
C3M0075120K
C2M1000170J
Wolfspeed
CRD-20DA12N-K
New
20 kW High Efficiency Three-Phase Motor Drive Inverter
DC to AC
Three-Phase, 2-Level
20kW
Discrete
TO-247-4, TO-263-7
C3M0040120K
C2M1000170J
Wolfspeed
CRD-22DD12N
22 kW Bi-Directional CLLC
DC to DC
CLLC
22kW
Discrete
TO-247-4
C3M0032120K
E3M0032120K
Wolfspeed
CRD-22AD12N
22 kW Bi-Directional Active Front End (AFE)
AC to DC
Three-Phase, 2-Level
22kW
Discrete
TO-247-4
C3M0032120K
Wolfspeed
CRD-22DD12N-J2
New

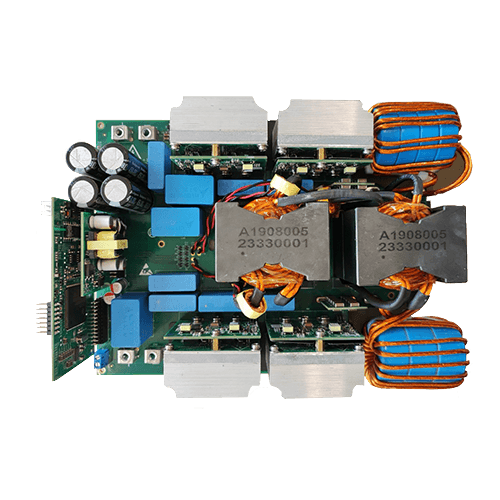

22 kW Bi-Directional CLLC Utilizing IMS Board
DC to DC
CLLC
22kW
Discrete
TO-263-7
E3M0032120J2
Wolfspeed
CRD25DA12N-FMC
25 kW FM3 Three-Phase Inverter
DC to AC
Three-Phase, 2-Level
25kW
Module
FM
CCB021M12FM3T
Wolfspeed
CRD-25BDA6512N-K
New
25 kW High Efficiency High Power Density Bi-directional T-type Inverter
DC to AC, AC to DC
Three-Phase, 3-Level
25kW
Discrete
TO-247-4
C3M0032120K
C3M0025065K
Wolfspeed
CRD-30DD12N-K
30 kW Interleaved LLC
DC to DC
LLC (3 Phase)
30kW
Discrete
TO-247-4, TO-220-2, TO-247-3
C3M0040120K
C6D20065D
C6D10065A
Wolfspeed
CRD-60DD12N-K
60 kW Interleaved LLC Converter
DC to DC
LLC (3 Phase)
60kW
Discrete
TO-247-4
C3M0040120K
C3M0032120K
C6D20065D
Wolfspeed
CRD-60DD12N
60 kW Interleaved Boost Converter
DC to DC
Boost - Asynchronous
60kW
Discrete
TO-247-4
C3M0075120K
C4D10120D
Wolfspeed
CRD200DA12E-XM3
200 kW XM3 Three-Phase Inverter
DC to AC
Three-Phase, 2-Level
200kW
Module
XM
CAB400M12XM3
CGD12HBXMP
Wolfspeed
CRD250DA12E-XM3
250 kW XM3 Three-Phase Inverter
DC to AC
Three-Phase, 2-Level
250kW
Module
XM
CAB425M12XM3
CGD12HBXMP
Wolfspeed
ERD300DA12SA-XM3
New
300 kW Three-Phase Traction Inverter
DC to AC
Three-Phase, 2-Level
300kW
Module
XM
EAB450M12XM3
CGD12HBXMP
Wolfspeed, Analog Devices, & Silicon Mobility
TIDM-02014
300 kW Three-Phase Traction Inverter
DC to AC
Three-Phase, 2-Level
300kW
Module
XM
EAB450M12XM3
Texas Instruments
CRD300DA12E-XM3
300 kW XM3 Three-Phase Inverter
DC to AC
Three-Phase, 2-Level
300kW
Module
XM
CAB450M12XM3
CGD12HBXMP
Wolfspeed
CRD600DA12E-XM3
600 kW XM3 High Performance Dual Three-Phase Inverter
DC to AC
Dual Three-Phase, 2-Level
600kW
Module
XM
CAB450M12XM3
CGD12HBXMP
Wolfspeed
