Features
- 600-Volt Schottky Rectifier
- Zero Forward and Reverse Recovery
- High-Frequency Operation
- Temperature-Independent Switching Behavior
- Extremely Fast Switching
- Positive temperature coefficient on VF

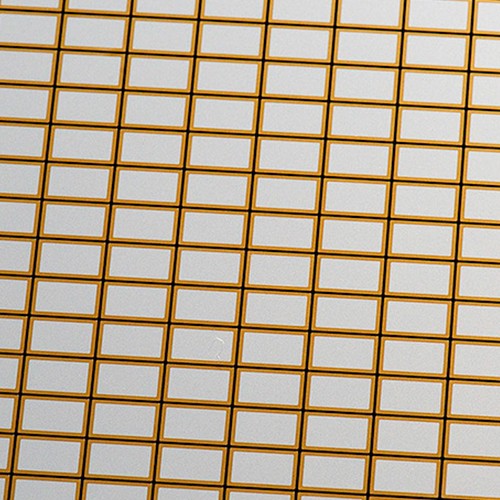

600 V Bare Die Silicon Carbide Schottky Diodes – Gen 3
Wolfspeed’s Gen 3 family of 600 V Silicon Carbide Schottky Diodes
Wolfspeed's Gen 3 family of 600 V bare die Silicon Carbide (SiC) Schottky diodes feature extremely fast switching; zero forward & reverse recovery; and high-frequency operation. Optimized for power applications like Switch Mode Power Supplies (SMPS), boost diodes in PFC or DC/DC stages, free wheeling diodes in inverter stages, AC/DC converters, solar energy systems, and more.
Products
600 V Bare Die Silicon Carbide Schottky Diodes – Gen 3
No filters selected, showing all 3 products
600 V Bare Die Silicon Carbide Schottky Diodes – Gen 3
Product SKU | Buy Online | Data Sheet | Qualification | Blocking Voltage | Current Rating | Total Capacitive Charge (QC (typ)) | Maximum Junction Temperature | Generation | Status |
|---|---|---|---|---|---|---|---|---|---|
Industrial | 600 V | 4 A | 8.5 nC | 175 °C | Gen 3 | Active | |||
Industrial | 600 V | 3 A | 6.7 nC | 175 °C | Gen 3 | Active | |||
Industrial | 600 V | 2 A | 4.8 nC | 175 °C | Gen 3 | Active |
Product Details
Benefits
- Reduces system size; weight; and cooling requirements
- Increased power density
- Parallel mode operation possible
Applications
- Switch Mode Power Supplies (SMPS)
- Boost diodes in PFC or DC/DC stages
- Free Wheeling Diodes in Inverter stages
- AC/DC converters
- Solar energy systems
Documents, Tools & Support
- Technical & Sales Documents
- Tools & Support
- Compliance
Documents
Document Type | Document Name | Last Updated |
|---|---|---|
| Data Sheets | 09/2023 | |
| Data Sheets | 09/2023 | |
| Data Sheets | 09/2023 | |
| Application Notes | 09/2015 | |
| Sales Terms | This document details the production packaging details including container type, quantity, MOQ, and dimensions as well as the moisture sensitivity level (MSL) for discrete SiC Schottky Diodes and MOSFETs
| 04/2024 |
| Sales Terms | 12/2021 |
