C3M0060065L

650 V, 60 mΩ, TOLL package, Industrial qualified, Discrete SiC MOSFET

Download Data Sheet

Request Sample

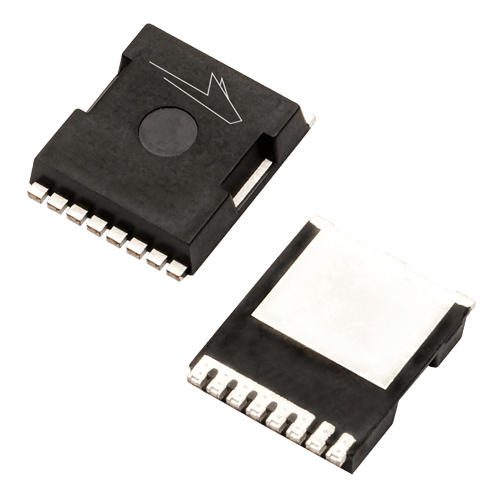

Angled product photo of the front and back of the TO-LL package used for Wolfspeed's Discrete Silicon Carbide MOSFETs.

Parametric Data

Display All SKUs in Product Family (18)

650 V Discrete Silicon Carbide MOSFETs

No filters selected, showing all 1 products

650 V Discrete Silicon Carbide MOSFETs

Product SKU	Buy Online	Request Sample	Data Sheet	CAD Model	Status	Blocking Voltage	R_DS(ON) at 25°C	Current Rating	T_jmax	Package	Qualification
C3M0060065L					Active	650 V	60 mΩ	39 A	175 °C	TOLL	Industrial

End of Section

Ordering & Compliance

C3M0060065L Ordering

Part Number	C3M0060065L	C3M0060065L-TR
Order Status	Active	Active
Buy Online
Request Sample		Available
Package	TOLL	TOLL T&R
Container Type	Cut Tape	Tape & Reel
Container Qty.	1	2000
Standard Packing Qty.	1	2000
Minimum Order Qty.	1	2000

C3M0060065L Compliance

Halogen Free	Yes
RoHS Declaration	Download
REACH Declaration	Download
California Prop 65	Learn More
ECCN	EAR99
Moisture Sensitivity Level	MSL 3

C3M0060065L Related Documents

Soldering & Handling	PRD-05653: Recommended Solder Profiles for Power Products
Packing & Shipping	Power Product Packing & Shipping Reference Guide

Product Details

Features

Low On-State Resistance over Temperature
Low Parasitic Capacitances
Fast Diode with ultra low reverse recovery
High Temperature Operation (TJ = 175°C)
Kelvin Source Pin
Industry Standard Through-Hole & SMT Packages
Small form factor
Low lead inductance
Low Thermal Impedance

Benefits

Improves System Efficiency with lower switching and conduction losses
Enables high switching frequency operation
Improves System Level Power Density
Reduces System Size; Weight; and Cooling Requirements
Enables new hard switching topologies (Totem-Pole PFC)

Typical Applications

Industrial Power Supplies
Server/Telecom
EV-Charging Systems
Energy Storage Systems (ESS)
Uninterruptible Power Supplies (UPS)
Battery Management Systems (BMS)

Featured Resources

Design Tools

SpeedFit Design Simulator LTspice & PLECS Models SpeedVal Kit™ Modular Evaluation Platform

Technical Support

Power Applications Forum

Featured Application Notes

Documents, Tools & Support

Display All SKUs in Product Family (18)

Technical & Sales Documents
Tools & Support
Compliance

Documents

Document Type	Document Name	Last Updated
Data Sheets	C3M0060065L	12/2024
Application Notes	PRD-05652: Mounting Recommendations and Thermal Measurement for Wolfspeed® SiC Power Devices in Through-Hole Packages	02/2025
Application Notes	PRD-04814: Design Options for Wolfspeed® Silicon Carbide MOSFET Gate Bias Power Supplies	01/2025
Application Notes	PRD-08907: Mitigating EMI with SiC Solutions in Renewable Energy & Grid-Connected Power Converters New	01/2025
Application Notes	PRD-08999: Turn-Off Gate Voltage Considerations for SiC MOSFETs New	12/2024
Application Notes	PRD-06752: PCB Layout Techniques for Discrete SiC MOSFETs	09/2024
Application Notes	PRD-08710: Measuring Stray Inductance in Power Electronics Systems	07/2024
Application Notes	PRD-06974: CRD-06600FF10N 6.6kW Bi-directional EV on-board charger Application Note	01/2024
Application Notes	PRD-03043: Measuring Switching and Conduction Losses in LTspice® Simulation Software	01/2024
Application Notes	PRD-08296: SiC MOSFET Short Circuit Events	11/2023
Application Notes	PRD-06933: Capacitance Ratio and Parasitic Turn-on	01/2023
Application Notes	PRD-05653: Recommended Solder Profiles for Power Products	09/2022
Application Notes	PRD-05641: Designing with Silicon Carbide in Energy Storage Applications	02/2022
Application Notes	PRD-02441: Design Options for Wolfspeed® Silicon Carbide MOSFET Gate Bias Power Supplies	11/2021
Test Report	PRD-00409: Driving Wolfspeed C3M SiC MOSFETs with Analog Devices ADuM4121	01/2024
Test Report	PRD-02344: SiC MOSFET Short-Circuit Protection Using Skyworks™ Si828x Gate Driver	03/2022
White Papers	Driving Industrial E-Mobility With Silicon Carbide Semiconductors	11/2024
Product Catalog	Power Product Line Card	01/2025
Sales Sheets & Flyers	Wolfspeed® 650 V Silicon Carbide MOSFET In Compact TOLL (TO-LEADLESS) Package	10/2022
Sales Terms	Power Product Packing & Shipping Reference Guide This document details the production packaging details including container type, quantity, MOQ, and dimensions as well as the moisture sensitivity level (MSL) for discrete SiC Schottky Diodes and MOSFETs	04/2024
Sales Terms	Wolfspeed, Inc. Sales Terms and Conditions	12/2021
