E4M0045075J2

750 V, 45 mΩ, TO-263-7 XL package, Automotive qualified, Discrete SiC MOSFET

Download Data Sheet

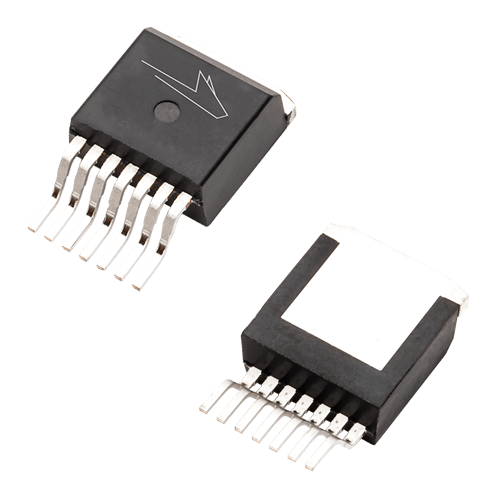

Image that includes both the front and back of the J1-TO-263-7 XL package used for Wolfspeed's discrete Silicon Carbide power devices including SiC MOSFETs and Schottky diodes.

Image that includes both the front and back of the J1-TO-263-7 XL package used for Wolfspeed's discrete Silicon Carbide power devices including SiC MOSFETs and Schottky diodes.

Parametric Data

Display All SKUs in Product Family (26)

E-Series Automotive-Qualified Silicon Carbide MOSFETs

No filters selected, showing all 1 products

E-Series Automotive-Qualified Silicon Carbide MOSFETs

Product SKU	Buy Online	Request Sample	Data Sheet	Status	Blocking Voltage	R_DS(ON) at 25°C	Current Rating	T_jmax	Package	Qualification
E4M0045075J2				Active	750 V	45 mΩ	46 A	175 °C	TO-263-7 XL	Automotive

End of Section

Ordering & Compliance

E4M0045075J2 Ordering

Part Number	E4M0045075J2-TR
Order Status	Active
Buy Online
Request Sample	Available
Package	TO-263-7 XL T&R
Container Type	Tape & Reel
Container Qty.	800
Standard Packing Qty.	800
Minimum Order Qty.	800

E4M0045075J2 Compliance

Halogen Free	Yes
RoHS Declaration	Download
REACH Declaration	Download
California Prop 65	Learn More
ECCN	EAR99
Moisture Sensitivity Level	MSL 3

Related Documents

E4M0045075J2 Related Documents

Soldering & Handling	PRD-05653: Recommended Solder Profiles for Power Products
Packing & Shipping	Power Product Packing & Shipping Reference Guide

Product Details

Features

Automotive Qualified (AEC-Q101) and PPAP capable
High breakdown voltage across entire operating temperature range
High-speed switching with low output capacitance
High blocking voltage with low R_DS(on)
Fast intrinsic diode with low reverse recovery (Qrr)

Benefits

Easy to parallel and simple to drive
Significant system size reduction
Mitigates range anxiety and facilitates faster charging

Applications

EV On-board chargers
High voltage DC/DC converters
EV HVAC motor drives
Drivetrain traction inverters

Featured Resources

Design Tools

SpeedFit Design Simulator LTspice & PLECS Models SpeedVal Kit™ Modular Evaluation Platform 22 kW Bi-Directional CLLC Utilizing IMS Board 6.6 kW Bi-Directional EV On-Board Charger

Technical Support

Power Applications Forum

Featured Application Notes

Documents, Tools & Support

Display All SKUs in Product Family (26)

Technical & Sales Documents
Tools & Support
Compliance

Documents

Document Type	Document Name	Last Updated
Data Sheets	E4M0045075J2	01/2025
Application Notes	PRD-05652: Mounting Recommendations and Thermal Measurement for Wolfspeed® SiC Power Devices in Through-Hole Packages	02/2025
Application Notes	PRD-04814: Design Options for Wolfspeed® Silicon Carbide MOSFET Gate Bias Power Supplies	01/2025
Application Notes	PRD-08907: Mitigating EMI with SiC Solutions in Renewable Energy & Grid-Connected Power Converters New	01/2025
Application Notes	PRD-08999: Turn-Off Gate Voltage Considerations for SiC MOSFETs New	12/2024
Application Notes	PRD-06752: PCB Layout Techniques for Discrete SiC MOSFETs	09/2024
Application Notes	PRD-08710: Measuring Stray Inductance in Power Electronics Systems	07/2024
Application Notes	PRD-06974: CRD-06600FF10N 6.6kW Bi-directional EV on-board charger Application Note	01/2024
Application Notes	PRD-03043: Measuring Switching and Conduction Losses in LTspice® Simulation Software	01/2024
Application Notes	PRD-06701: Thermal Management of Bottom-Side Cooled Surface-Mount Devices & Design Considerations	12/2023
Application Notes	PRD-08296: SiC MOSFET Short Circuit Events	11/2023
Application Notes	PRD-06933: Capacitance Ratio and Parasitic Turn-on	01/2023
Application Notes	PRD-05653: Recommended Solder Profiles for Power Products	09/2022
White Papers	Gen 4 Silicon Carbide Technology: Redefining Performance and Durability in High-Power Applications New	01/2025
White Papers	Driving Industrial E-Mobility With Silicon Carbide Semiconductors	11/2024
Product Catalog	Power Product Line Card	01/2025
Sales Sheets & Flyers	Wolfspeed 650 V MOSFET E-Series Product Brief	07/2022
Sales Terms	Power Product Packing & Shipping Reference Guide This document details the production packaging details including container type, quantity, MOQ, and dimensions as well as the moisture sensitivity level (MSL) for discrete SiC Schottky Diodes and MOSFETs	04/2024
Sales Terms	Wolfspeed, Inc. Sales Terms and Conditions	12/2021
