Silicon Carbide Power Modules

Wolfspeed is able to offer the benefits of vertical integration from Silicon Carbide (SiC) material to package enabling us to provide leading Silicon Carbide technology throughout the supply chain. The goal of our power modules is to meet each customer's system design requirements with a package that offers best-in-class Silicon Carbide performance. We offer two distinct product categories to serve different customer value propositions: Industry-Standard Footprints and Optimized Footprints.

Featured Resources

Design Tools

SpeedFit Design Simulator LTspice & PLECS Models

Technical Support

Power Applications Forum

Featured Application Notes

Products

Silicon Carbide Power Modules

No filters selected, showing all 70 products

Silicon Carbide Power Modules - Filter By

Silicon Carbide Power Modules

Product SKU	Status	Package	Configuration	Blocking Voltage	Current Rating	R_DS(ON) at 25°C	Generation	T_jmax	Module Size	Pre-Applied TIM	Qualification
EAB450M12XM3	Active	XM	Half-Bridge	1200 V	450 A	2.6 mΩ	Gen 3 MOS	175 °C	80 x 53 x 19 mm	No	Automotive
CAB450M12XM3	Active	XM	Half-Bridge	1200 V	450 A	2.6 mΩ	Gen 3 MOS	175 °C	80 x 53 x 19 mm	No	Industrial
CAB425M12XM3	Active	XM	Half-Bridge	1200 V	425 A	3.2 mΩ	Gen 3 MOS	175 °C	80 x 53 x 19 mm	No	Industrial
CAB320M17XM3	Active	XM	Half-Bridge	1700 V	320 A	3.5 mΩ	Gen 3	175 °C	80 x 53 x 19 mm	No	Industrial
CAB400M12XM3	Active	XM	Half-Bridge	1200 V	400 A	4 mΩ	Gen 3 MOS	175 °C	80 x 53 x 19 mm	No	Industrial

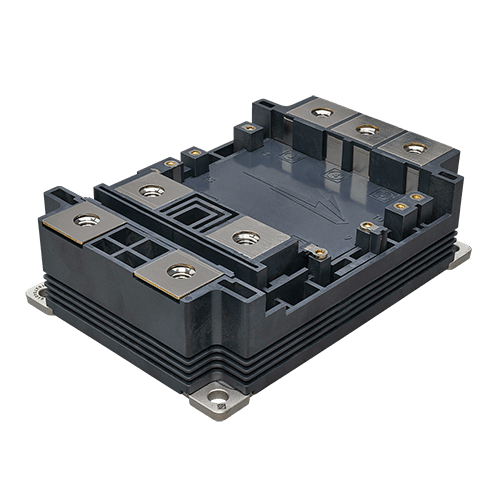

CAB600M33LM3 New	Active	LM	Half-Bridge	3300 V	770 A	2.7 mΩ	Gen 3	175 °C	144 x 100 x 40 mm	No	Industrial
CAR600M12HN6	Active	HM	Half-Bridge Rectifier	1200 V	600 A		Gen 6	175 °C	110 mm x 65 mm x 12.2 mm	No	Industrial
CAR600M17HN6	Active	HM	Half-Bridge Rectifier	1700 V	600 A		Gen 6	175 °C	110 mm x 65 mm x 12.2 mm	No	Industrial
CAB760M12HM3R	Active	HM	Half-Bridge Right GK for Paralleling	1200 V		1.33 mΩ	Gen 3 MOS	175 °C	110 mm x 65 mm x 12.2 mm	No	Industrial
CAB760M12HM3	Active	HM	Half-Bridge	1200 V	760 A	1.33 mΩ	Gen 3 MOS	175 °C	110 mm x 65 mm x 12.2 mm	No	Industrial
CAB650M17HM3	Active	HM	Half-Bridge	1700 V	650 A	1.67 mΩ	Gen 3 MOS	175 °C	110 mm x 65 mm x 12.2 mm	No	Industrial
CAS480M12HM3	Active	HM	Half-Bridge	1200 V	480 A	2.29 mΩ	Gen 3 MOS + Diodes	175 °C	110 mm x 65 mm x 12.2 mm	No	Industrial
CAB500M17HM3	Active	HM	Half-Bridge	1700 V	500 A	2.5 mΩ	Gen 3 MOS	175 °C	110 mm x 65 mm x 12.2 mm	No	Industrial
CAS380M17HM3	Active	HM	Half-Bridge	1700 V	380 A	3.3 mΩ	Gen 3 MOS + Diodes	175 °C	110 mm x 65 mm x 12.2 mm	No	Industrial
CAB004M12GM4 New	Active	GM	Half-Bridge	1200 V	200 A	4 mΩ	Gen 4	175 °C	62.8 mm x 56.7 mm	No	Industrial
CAB004M12GM4T New	Active	GM	Half-Bridge	1200 V	200 A	4 mΩ	Gen 4	175 °C	62.8 mm x 56.7 mm	Yes	Industrial
CAB5R0A23GM4 New	Active	GM	Half Bridge (AlN substrate)	2300 V	200 A	5 mΩ	Gen 4 MOS	150 °C	62.8 mm x 56.7 mm	No	Industrial
CAB5R0A23GM4T New	Active	GM	Half Bridge (AlN substrate)	2300 V	200 A	5 mΩ	Gen 4 MOS	150 °C	62.8 mm x 56.7 mm	Yes	Industrial
CAB6R0A23GM4T New	Active	GM	Half Bridge (AlN substrate)	2300 V	200 A	6 mΩ	Gen 4 MOS	150 °C	62.8 mm x 56.7 mm	Yes	Industrial
CAB6R0A23GM4 New	Active	GM	Half Bridge (AlN substrate)	2300 V	200 A	6 mΩ	Gen 4 MOS	150 °C	62.8 mm x 56.7 mm	No	Industrial
CAB006A12GM3T	Active	GM	Half Bridge (AlN substrate)	1200 V	200 A	6 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	Yes	Industrial
CAB006M12GM3T	Active	GM	Half-Bridge	1200 V	200 A	6 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	Yes	Industrial
CAB006M12GM3	Active	GM	Half-Bridge	1200 V	200 A	6 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	No	Industrial
CAB006A12GM3	Active	GM	Half Bridge (AlN substrate)	1200 V	200 A	6 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	No	Industrial
CAB7R5A23GM4 New	Active	GM	Half Bridge (AlN substrate)	2300 V	170 A	7.5 mΩ	Gen 4 MOS	150 °C	62.8 mm x 56.7 mm	No	Industrial
CAB7R5A23GM4T New	Active	GM	Half Bridge (AlN substrate)	2300 V	170 A	7.5 mΩ	Gen 4 MOS	150 °C	62.8 mm x 56.7 mm	Yes	Industrial
CAB008A12GM3T	Active	GM	Half Bridge (AlN substrate)	1200 V	181 A	8 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	Yes	Industrial
CAB008M12GM3T	Active	GM	Half-Bridge	1200 V	160 A	8 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	Yes	Industrial
CAB008A12GM3	Active	GM	Half Bridge (AlN substrate)	1200 V	181 A	8 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	No	Industrial
CAB008M12GM3	Active	GM	Half-Bridge	1200 V	160 A	8 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	No	Industrial
CHB011M12GM4T New	Active	GM	T-Type	1200 V	100 A	11 mΩ	Gen 4	175 °C	62.8 mm x 56.7 mm	Yes	Industrial
CHB011M12GM4 New	Active	GM	T-Type	1200 V	100 A	11 mΩ	Gen 4	175 °C	62.8 mm x 56.7 mm	No	Industrial
CBB011M12GM4T New	Active	GM	Full-Bridge	1200 V	100 A	11 mΩ	Gen 4	175 °C	62.8 mm x 56.7 mm	Yes	Industrial
CBB011M12GM4 New	Active	GM	Full-Bridge	1200 V	100 A	11 mΩ	Gen 4	175 °C	62.8 mm x 56.7 mm	No	Industrial
CAB011A12GM3T	Active	GM	Half-Bridge	1200 V	141 A	11 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	Yes	Industrial
CAB011A12GM3	Active	GM	Half-Bridge	1200 V	141 A	11 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	No	Industrial
CCB016M12GM3T	Active	GM	Six-pack (three-phase)	1200 V	50 A	16 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	Yes	Industrial
CCB016M12GM3	Active	GM	Six-pack (three-phase)	1200 V	50 A	16 mΩ	Gen 3 MOS	150 °C	62.8 mm x 56.7 mm	No	Industrial
CAB011M12FM3T	Active	FM	Half-Bridge	1200 V	117 A	11 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	Yes	Industrial
CAB011M12FM3	Active	FM	Half-Bridge	1200 V	117 A	11 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	No	Industrial
CAB016M12FM3T	Active	FM	Half-Bridge	1200 V	84 A	16 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	Yes	Industrial
CAB016M12FM3	Active	FM	Half-Bridge	1200 V	84 A	16 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	No	Industrial
CBB021M12FM3T	Active	FM	Full-Bridge	1200 V	48 A	21 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	Yes	Industrial
CCB021M12FM3T	Active	FM	Six-pack (three-phase)	1200 V	30 A	21 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	Yes	Industrial
CBB021M12FM3	Active	FM	Full-Bridge	1200 V	48 A	21 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	No	Industrial
CCB021M12FM3	Active	FM	Six-pack (three-phase)	1200 V	30 A	21 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	No	Industrial
CBB032M12FM3T	Active	FM	Full-Bridge	1200 V	37 A	32 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	Yes	Industrial
CCB032M12FM3T	Active	FM	Six-pack (three-phase)	1200 V	30 A	32 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	Yes	Industrial
CBB032M12FM3	Active	FM	Full-Bridge	1200 V	37 A	32 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	No	Industrial
CCB032M12FM3	Active	FM	Six-pack (three-phase)	1200 V	30 A	32 mΩ	Gen 3 MOS	150 °C	62.8 mm x 33.8 mm	No	Industrial
CAB003M09DM3	Active	DM	Half-Bridge	900 V	350 A	2.5 mΩ	Gen 3 MOS	175 °C	51.6 mm x 40.8 mm	No	Industrial
WAS530M12BM3	Active	62 mm	Half-Bridge	1200 V	530 A	2.6 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial + HV-H3TRB
CAS530M12BM3	Active	62 mm	Half-Bridge	1200 V	530 A	2.6 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial
CAB530M12BM3	Active	62 mm	Half-Bridge	1200 V	530 A	2.6 mΩ	Gen 3 MOS	150 °C	105 x 62 x 31 mm	No	Industrial
HAS530M12BM3	Active	62 mm	Half-Bridge	1200 V	530 A	2.67 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial + HV-H3TRB
HAS350M12BM3	Active	62 mm	Half-Bridge	1200 V	350 A	4 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial + HV-H3TRB
CAS350M12BM3	Active	62 mm	Half-Bridge	1200 V	350 A	4 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial
WAS350M12BM3	Active	62 mm	Half-Bridge	1200 V	350 A	4 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial + HV-H3TRB
HAS310M17BM3	Active	62 mm	Half-Bridge	1700 V	310 A	4.29 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial + HV-H3TRB
CAS310M17BM3	Active	62 mm	Half-Bridge	1700 V	310 A	4.29 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial
WAS310M17BM3	Active	62 mm	Half-Bridge	1700 V	310 A	4.29 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial + HV-H3TRB
HAS175M12BM3	Active	62 mm	Half-Bridge	1200 V	175 A	8 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial
CAS175M12BM3	Active	62 mm	Half-Bridge	1200 V	175 A	8 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial
WAS175M12BM3	Active	62 mm	Half-Bridge	1200 V	175 A	8 mΩ	Gen 3 MOS + Diodes	150 °C	105 x 62 x 31 mm	No	Industrial + HV-H3TRB
CAS300M17BM2	Last Time Buy	62 mm	Half-Bridge	1700 V	225 A	8 mΩ	Gen 2 MOS + Diodes	150 °C	106 x 62 x 30 mm	No	Industrial
CAS120M12BM2	Last Time Buy	62 mm	Half-Bridge	1200 V	120 A	13 mΩ	Gen 2 MOS + Diodes	150 °C	106 x 62 x 30 mm	No	Industrial
WAS300M12BM2	NRND	62 mm	Half-Bridge	1200 V	300 A	4.17 mΩ	Gen 2 MOS + Diodes	150 °C	106 x 62 x 30 mm	No	Industrial + HV-H3TRB
CAS300M12BM2	NRND	62 mm	Half-Bridge	1200 V	300 A	4.2 mΩ	Gen 2 MOS + Diodes	150 °C	106 x 62 x 30 mm	No	Industrial
CAS110M12BM2	NRND	62 mm	Half-Bridge	1200 V	110 A	12.5 mΩ	Gen 2 MOS + Diodes	150 °C	106 x 62 x 30 mm	No	Industrial
WAS110M12BM2	NRND	62 mm	Half-Bridge	1200 V	110 A	12.5 mΩ	Gen 2 MOS + Diodes	150 °C	106 x 62 x 30 mm	No	Industrial + HV-H3TRB

Explore The Options

Composite image of two Wolfspeed WolfPACK™ Silicon Carbide Power Modules stacked on each other.

Wolfspeed WolfPACK™ Silicon Carbide Power Module Family

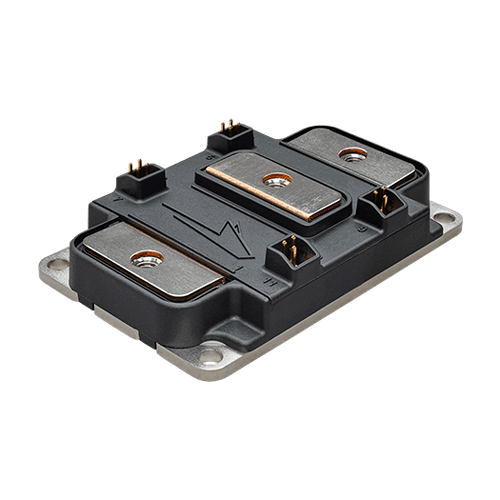

XM3 Half-Bridge Power Module Family

Angled product photo of the white 62 mm half-bridge power module for Wolfspeed. Its form factor is used for both BM2 and BM3 families.

62 mm BM3 Silicon Carbide Half-Bridge Power Modules

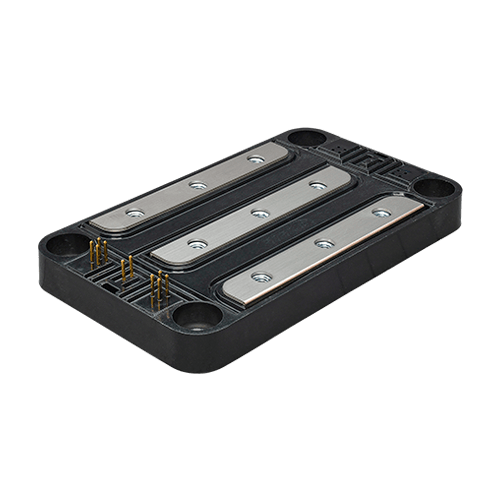

HM Power Module Family
