Features
- Leading silicon carbide MOSFET technology in an industry standard form factor
- Highest current rated topologies versus market equivalents
- Built in NTC
- Press-Fit connections

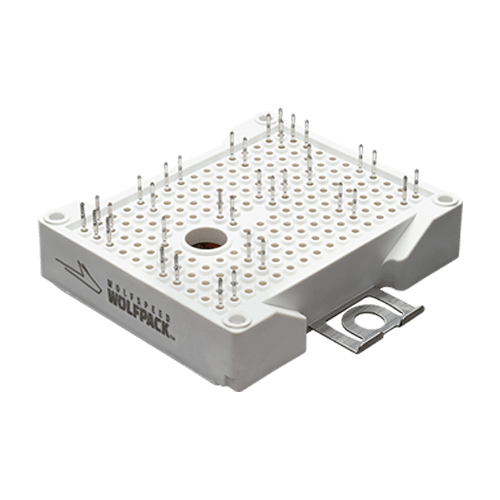

CAB008A12GM3T
1200 V, 8 mΩ, GM, Half Bridge (AlN substrate), Industrial qualified, SiC Power Module with Pre-Applied Thermal Interface Material (TIM)
Parametric Data
Wolfspeed WolfPACK™ Silicon Carbide Power Module Family
No filters selected, showing all 1 products
Wolfspeed WolfPACK™ Silicon Carbide Power Module Family
Product SKU | Buy Online | Request Sample | Data Sheet | Status | Package | Configuration | Blocking Voltage | Current Rating | RDS(ON) at 25°C | Generation | Tjmax | Module Size | Pre-Applied TIM | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CAB008A12GM3T | Active | GM | Half Bridge (AlN substrate) | 1200 V | 181 A | 8 mΩ | Gen 3 MOS | 150 °C | 62.8 mm x 56.7 mm | Yes | Industrial |
Ordering & Compliance
CAB008A12GM3T Ordering
| Part Number | CAB008A12GM3T |
|---|---|
| Order Status | Active |
| Buy Online | |
| Request Sample | |
| Package | GM |
| Container Type | Tray |
| Container Qty. | 18 |
| Standard Packing Qty. | 54 |
| Minimum Order Qty. | 54 |
CAB008A12GM3T Compliance
| RoHS Declaration | |
|---|---|
| REACH Declaration | |
| California Prop 65 | Learn More |
| ECCN | EAR99 |
Product Details
Benefits
- Ease of layout and assembly
- System scalability and reliability
- Discrete design consolidated into a single package
- Increased power density / reduced system size
Typical Applications
- EV Fast Charging
- Industrial Power
- UPS
- Induction Heating Welding
- Industrial Motor Drives
- Power Supplies
- Solar & Renewable Energy
- DC/DC Converter
