SpeedVal™ Kit Modular Evaluation Platform​ Control Cards

Simplify your evaluation experience
Configure My Kit
The SpeedVal Kit Evaluation Platform offers optional Control Cards from industry-leading partners. Pre-tested firmware can be downloaded onto these boards and a computer based graphical user interface (GUI) simplifies testing.  The GUI can be used to select the operating mode for the SpeedVal Kit evaluation board and configure the relevant control settings for each mode as well as monitor current and voltage feedbacks from the board.  ​ The control cards provide the PWM signals for the MOSFETs and monitor bus, phase, and external voltages along with phase current and bus current. Control cards eliminate the need to provide PWM signals from a function generator.  Additionally, users can modify or write their own control code, providing a way to begin firmware development before developing your own hardware. This step improves first pass success on a new design and accelerates time to market.

Parametric Data

SpeedVal™ Kit Modular Evaluation Platform​ Control Cards

No filters selected, showing all 2 products

SpeedVal™ Kit Modular Evaluation Platform​ Control Cards

Name
Product SKU
Buy Online
Designed By
View Product

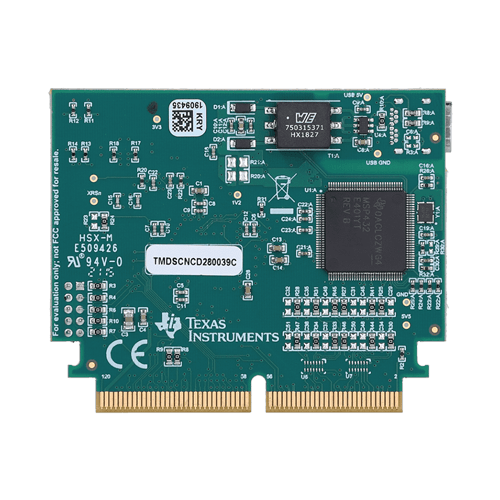

TI C2000(TM) MCU F280039
TMDSCNCD280039C
Texas Instruments

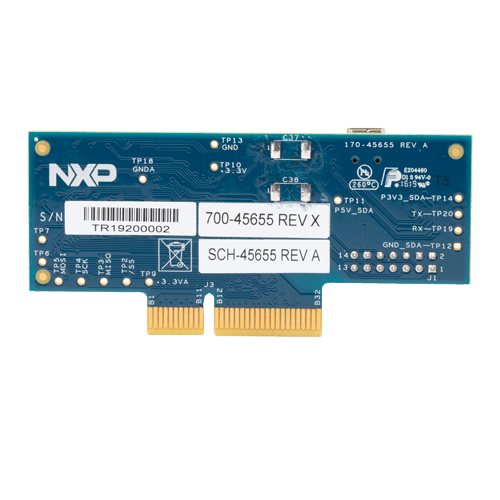

HVP-56F83783
NXP

Product Details

Specifications
  • Utilize off-the-shelf control card with custom firmware​
  • Controls PWM signals​
  • Measures currents and voltages​
  • Provides rudimentary safety checks – over voltage, over current​
  • Interface with computer-based GUI via USB
What's Included
  • Control Card
  • Custom firmware (downloadable)
  • GUI (downloadable)
  • Download Firmware and GUI from Motherboard page:
    3-Phase
    Half-Bridge

Documents, Tools & Support

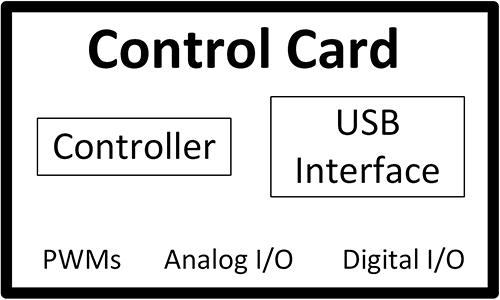

Block diagram of the circuit design of the Control Card used in Wolfspeed's SpeedVal Kit modular evaluation platform.
