Dynamic Characterization Evaluation Tool Optimized for the Wolfspeed WolfPACK™ Half Bridge Module Platform
KIT-CRD-CIL12N-FMA
Wolfspeed’s KIT-CRD-CIL12N-FMA is a dynamic characterization tool that can be used to evaluate and optimize switching performance of Wolfspeed’s WolfPACK™ FM3 Silicon Carbide (SiC) half-bridge power modules. A clamped inductive load (CIL) test circuit with current measurement provides a high speed; low inductance test fixture for double pulse testing. This test fixture in conjuction with a choice of gate driver boards options allows measurement of:
- Timing (TDelay-On; TDelay-Off; TRise; TFall)
- Overshoot (VDS-Max; ID-Max)
- Speed (di/dt; dv/dt)
- Switching Loss (EON; EOFF; ERR)
Specifications
- Optimized for Wolfspeed’s WolfPACK™ Silicon Carbide half bridge power modules
- DC bus voltage up to 1000V
- On Board 200uF Bulk Capacitor and High Frequency Film Capacitor Bank
- High speed; low inductance layout with stray inductance of 6.2nH @10Mhz
- On-board Current Viewing Resistor (CVR)
- Screw terminal‘s for supply; midpoint and load inductor connections
What's Included
- Fully assembled PCB board
- Reference Design Files
Request Separately
- Differential Transceiver CGD12HB00D
- Gate Driver Board Options
- Analog Devices EVAL-ADUM4146WHB1Z
- Skyworks Si823H-AAWA-KIT
- Texas Instruments CGD1700HB2M-UNA (Paper Design Only)
Product Compatibility
Wolfspeed WolfPACK™ SiC Power Modules Family
Documents, Tools, & Support

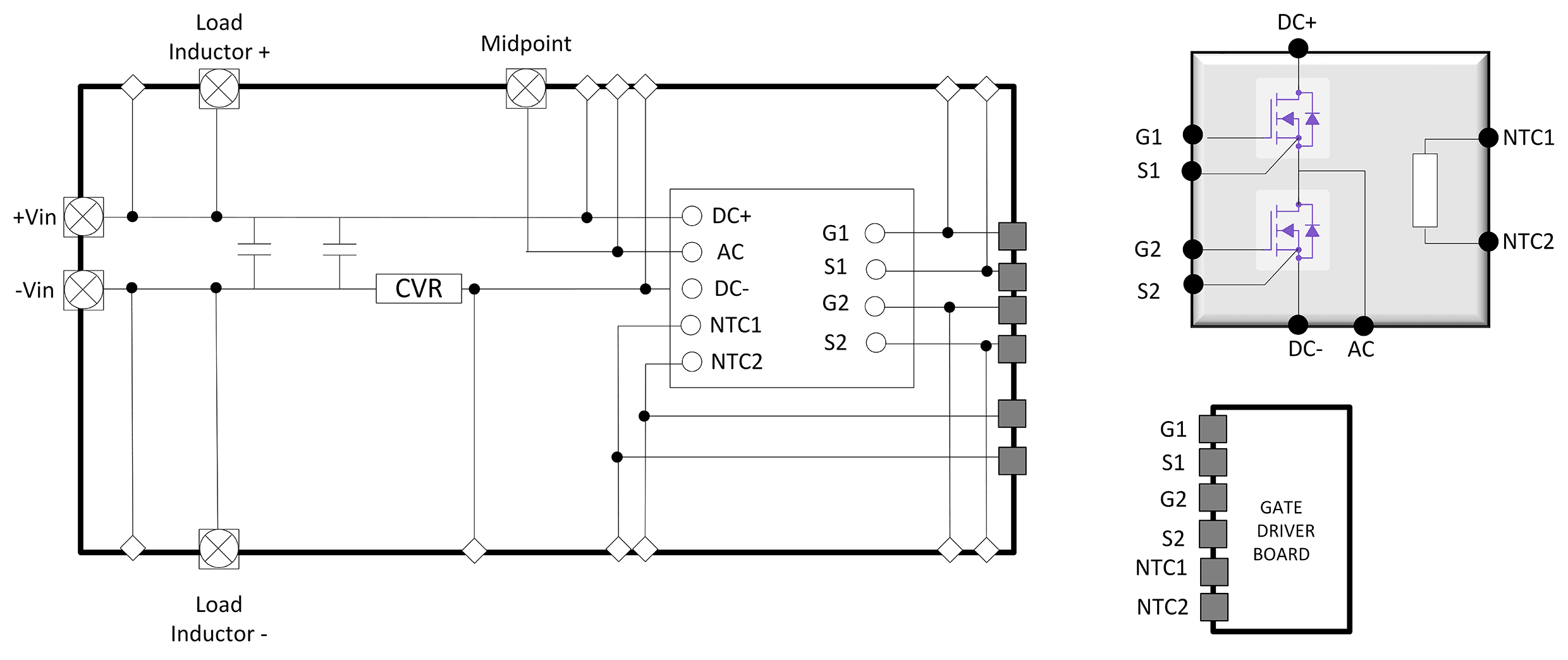

- Block Diagram
- Technical & Sales Documents
- Tools & Support
Film Bulk Cap
200uF, 1100V VDC film bulk cap to charge up load inductor to desired current without significantly discharging dc bus
Current Viewing Resistor
Current Viewing resistor enables high‐fidelity, high‐accuracy current measurements
Gate Driver Board
Analog Devices EVAL-ADUM4146WHB1Z
Silicon labs S823H-AAWA-KIT
Texas Instruments CGD1700HB2M-UNA (Paper Design Only)
