Specifications
- Reconfigurable to enable buck or boost operation
- Maximum voltage: 900V
- Multiple power ratings available
- Simplifies system-level testing
SpeedVal™ Kit Modular Evaluation Platform Buck/Boost Filter Board
Easily perform high-power buck or boost testing
The SpeedVal Kit Evaluation Platform has an optional Buck/Boost Filter Accessory Board that seamlessly enables Buck or Boost. This board contains an inductor, capacitors and a fan, and easily screws directly onto the SpeedVal Kit half-bridge motherboard with high-current connections.
With this board, you can easily change between running the evaluation board as a buck or boost converter by simply changing the connections to this board from the power supply and load.
Parametric Data
SpeedVal™ Kit Modular Evaluation Platform Buck/Boost Filter Board
No filters selected, showing all 2 products
SpeedVal™ Kit Modular Evaluation Platform Buck/Boost Filter Board - Filter By
SpeedVal™ Kit Modular Evaluation Platform Buck/Boost Filter Board
Product SKU | Buy Online | User Guide | Design Files | Current Rating | Inductance at No Load | Inductance at Rated Current | Output Capacitance |
|---|---|---|---|---|---|---|---|
25 A | 693 uH | 400 uH | 48 pF | ||||
MOD-ACC-BUCKBOOST-190uH | 40 A | 398 uH | 190 uH | 48 pF |
Product Details
What's Included
- Fully assembled filter board
- Voltage feedback harness
- Fan for cooling the inductor
- Complete design files
Purchase Separately
- Motherboard (required)
- Power Daughter Cards (required)
- Gate Drive Card (required)
- Control Card (optional)
- Air Core Inductor (optional)
Featured Resources
Technical Support
Featured Documents
Documents, Tools & Support

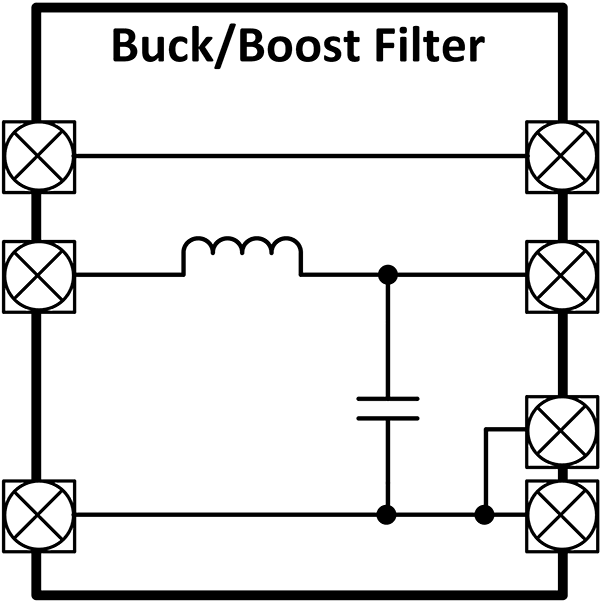

- Block Diagram
